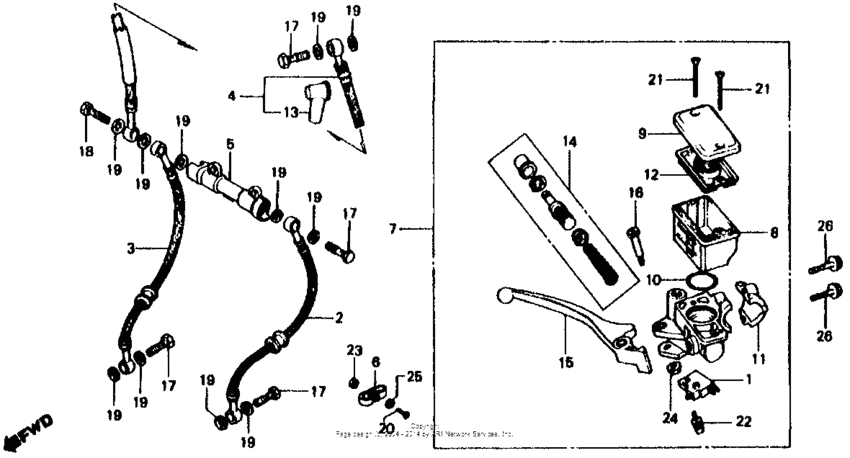

Front brake master cylinder 81-82 Diagram Honda CB750
- Year
- 1981
- Model code
- CB750F A
- Sales region
- USA
- Frame
- JH2RC040*BM200001 - JH2RC040*BM207766
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35340-MA5-671 Switch, fr. stop |
35340-MA5-671 |
from US $14.55 |
||
|
2
|
2
45124-445-631
Hose,l.fr.brake
|
45124-445-631 |
— | ||
|
3
|
3
45125-445-631
Hose, r. fr. brake
|
45125-445-631 |
— | ||
|
4
|
4
45126-425-832
Hose b,fr.brake
|
45126-425-832 |
— | ||
|
5
|
5
45127-422-003
Joint,two way
|
45127-422-003 |
— | ||
|
7
|
7
45500-445-632
Cylinder assy,fr.
|
45500-445-632 |
— | ||
|
8
|
8
45511-MA5-671 Cup,oil |
45511-MA5-671 |
from US $42.43 |
||
|
9
|
9
45513-MA5-671 Cap,oil cup |
45513-MA5-671 |
US $42.74 |
||
|
10
|
10
45516-166-006 O-ring |
45516-166-006 |
from US $7.99 |
||
|
11
|
11
45517-MA5-671 Holder |
45517-MA5-671 |
from US $13.74 |
||
|
12
|
12
45520-MA5-672 Diaphragm |
45520-MA5-672 |
from US $12.88 |
||
|
13
|
13
45522-422-000 Boot |
45522-422-000 |
from US $9.77 |
||
|
14
|
14
45530-MA5-671 Master cylinder set |
45530-MA5-671 |
from US $45.42 |
||
|
15
|
15
53175-MA5-671 Lev,r.strg.hndl |
53175-MA5-671 |
from US $29.56 |
||
|
16
|
16
90114-MA5-671 Bolt, r |
90114-MA5-671 |
from US $4.07 |
||
|
17
|
17
90145-300-010 Bolt, oil |
90145-300-010 |
from US $8.58 |
||
|
18
|
18
90145-422-020
Bolt, oil
|
90145-422-020 |
— | ||
|
19
|
19
90545-300-000 Washer |
90545-300-000 |
from US $1.21 |
||
|
21
|
21
93600-040-451-G Screw,flat,4x45 |
93600-040-451-G |
from US $0.47 |
||
|
22
|
22
93893-040-120-8 Screw-washer4X12 |
93893-040-120-8 |
from US $0.58 |
||
|
24
|
24
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
26
|
26
95701-060-250-7 BoltFLANGE, 6X25 |
95701-060-250-7 |
from US $0.59 |
