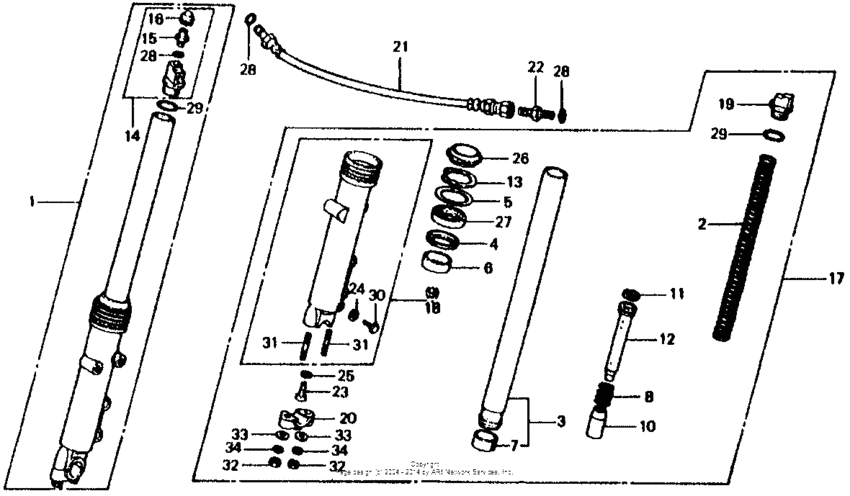

Front fork 81-82 Diagram Honda CB750
- Year
- 1981
- Model code
- CB750F A
- Sales region
- USA
- Frame
- JH2RC040*BM200001 - JH2RC040*BM207766
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51400-445-631
Fork assy., r. fr.
|
51400-445-631 |
— | ||
|
2
|
2
51401-445-631
Spring,fr.cushion
|
51401-445-631 |
— | ||
|
3
|
3
51410-445-631
Pipe comp,fr.fork
|
51410-445-631 |
— | ||
|
4
|
4
51412-461-003 Ring, back-up |
51412-461-003 |
from US $4.28 |
||
|
5
|
5
51413-461-003
Plate,back up
|
51413-461-003 |
— | ||
|
6
|
6
51414-MN4-003 Bush, guide |
51414-MN4-003 |
from US $7.55 |
||
|
7
|
7
51415-461-003 Bush,slider |
51415-461-003 |
from US $12.49 |
||
|
8
|
8
51416-461-003 Spring,rebound |
51416-461-003 |
US $9.18 |
||
|
9
|
9
51421-445-631
Case,r.bottom
|
51421-445-631 |
— | ||
|
10
|
10
51432-461-771
Piece,oil lock
|
51432-461-771 |
— | ||
|
11
|
11
51437-461-003 Ring, piston |
51437-461-003 |
from US $7.15 |
||
|
12
|
12
51440-445-631 Pipe,seat |
51440-445-631 |
US $65.61 |
||
|
13
|
13
51447-461-003 Circlip (50mm) |
51447-461-003 |
from US $3.78 |
||
|
14
|
14
51450-461-013
Bolt assy,fr.fork
|
51450-461-013 |
— | ||
|
15
|
15
51456-469-013 Valve, air |
51456-469-013 |
US $41.09 |
||
|
16
|
16
51457-469-000
Cap assy., air valve
|
51457-469-000 |
— | ||
|
17
|
17
51500-445-631
Fork Assy., L. Fr.
|
51500-445-631 |
— | ||
|
18
|
18
51521-445-631
Case,l.bottom
|
51521-445-631 |
— | ||
|
19
|
19
51555-461-003
Bolt,l.fr.fork
|
51555-461-003 |
— | ||
|
20
|
20
95014-41100 Holder,axle |
95014-41100 |
US $9.92 |
||
|
21
|
21
53137-461-771
Horse comp,joint
|
53137-461-771 |
— | ||
|
22
|
22
53139-463-000 Connector |
53139-463-000 |
US $26.38 |
||
|
23
|
23
90116-383-721 Bolt, socket (8mm) |
90116-383-721 |
from US $3.85 |
||
|
24
|
24
90543-273-000 Gasket, fr. |
90543-273-000 |
from US $2.15 |
||
|
25
|
25
90544-283-000 Washer (8mm) |
90544-283-000 |
from US $2.52 |
||
|
26
|
26
91254-KAZ-003 Dust seal |
91254-KAZ-003 |
from US $14.21 |
||
|
27
|
27
91255-461-003 Oil seal,37x50x11 |
91255-461-003 |
from US $17.14 |
||
|
28
|
28
91305-323-000 O-ring, 5.8x1.9 |
91305-323-000 |
from US $2.22 |
||
|
28
|
28
91318-ME5-003 O-ring, 5.6x1.9 (arai) |
91318-ME5-003 |
from US $3.18 |
||
|
29
|
29
91344-PC9-004 O-ring29X2.4 (NOK) |
91344-PC9-004 |
from US $2.44 |
||
|
30
|
30
92101-06008-0A Bolt, hex., 6x8 |
92101-06008-0A |
from US $0.44 |
||
|
31
|
31
92900-08028-3B Bolt, stud (8x50) |
92900-08028-3B |
from US $0.74 |
||
|
32
|
32
94030-08000 NutHEX., 8MM |
94030-08000 |
from US $0.44 |
||
|
33
|
33
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
34
|
34
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
