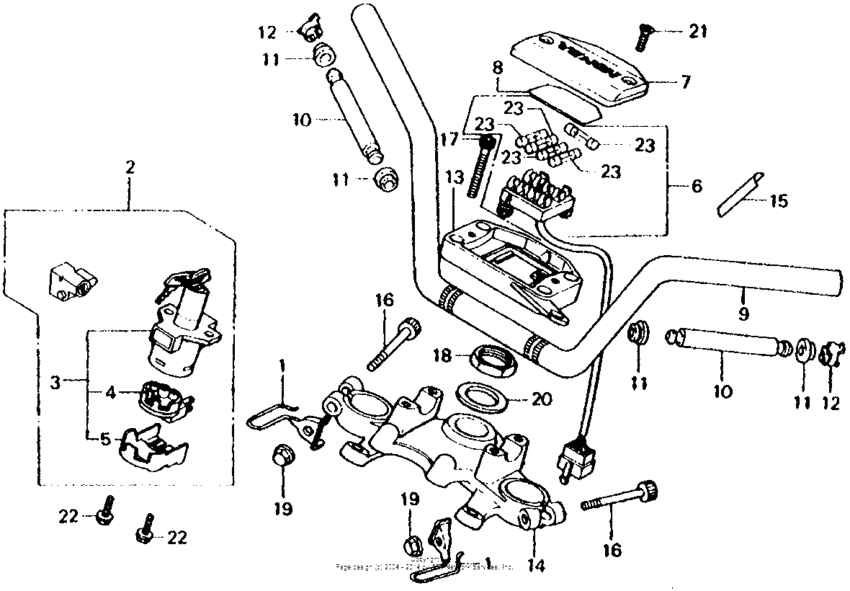

Handlebar + top bridge + key set Diagram Honda CB750
- Year
- 1981
- Model code
- CB750F A
- Sales region
- USA
- Frame
- JH2RC040*BM200001 - JH2RC040*BM207766
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17908-425-000
Guide,cable
|
17908-425-000 |
— | ||
|
2
|
2
35010-425-870
Key set
|
35010-425-870 |
— | ||
|
3
|
3
35100-422-017
Switch assy
|
35100-422-017 |
— | ||
|
4
|
4
35101-422-007
Base comp,contact
|
35101-422-007 |
— | ||
|
5
|
5
35102-431-007 Cover,switch |
35102-431-007 |
US $5.48 |
||
|
6
|
6
38200-MF9-405
Box assy fuse
|
38200-MF9-405 |
— | ||
|
7
|
7
38210-425-000
Cover,fuse plate
|
38210-425-000 |
— | ||
|
8
|
8
38215-MA4-670
Label,fuse
|
38215-MA4-670 |
— | ||
|
9
|
9
53100-445-670
Pipe,hn/dl.strg.
|
53100-445-670 |
— | ||
|
10
|
10
53105-425-830 Weight, handlebar |
53105-425-830 |
US $16.61 |
||
|
11
|
11
53107-425-000
Rubber
|
53107-425-000 |
— | ||
|
12
|
12
53108-MK4-000 Ring |
53108-MK4-000 |
from US $5.62 |
||
|
13
|
13
53131-MA4-670
Hldr, handle (upper)
|
53131-MA4-670 |
— | ||
|
14
|
14
53230-445-630
Bridge, fork top
|
53230-445-630 |
— | ||
|
15
|
15
87517-445-630
Label,fork cautio
|
87517-445-630 |
— | ||
|
16
|
16
90167-422-000
Bolt,socket,7x55
|
90167-422-000 |
— | ||
|
17
|
17
90185-371-000 Bolt (8x32) |
90185-371-000 |
from US $4.62 |
||
|
18
|
18
90304-425-000 Nut, steering stem |
90304-425-000 |
from US $9.92 |
||
|
19
|
19
90360-428-900
Nut, cap. (7mm)
|
90360-428-900 |
— | ||
|
20
|
20
90503-425-000 Washer |
90503-425-000 |
from US $2.89 |
||
|
21
|
21
93700-050200G Screw, oval (5x20) |
93700-050200G |
from US $0.37 |
||
|
22
|
22
95701-060-160-0 BoltFLANGE, 6X16 |
95701-060-160-0 |
from US $0.52 |
||
|
23
|
23
98200-21500 Fuse b15A |
98200-21500 |
from US $0.62 |
