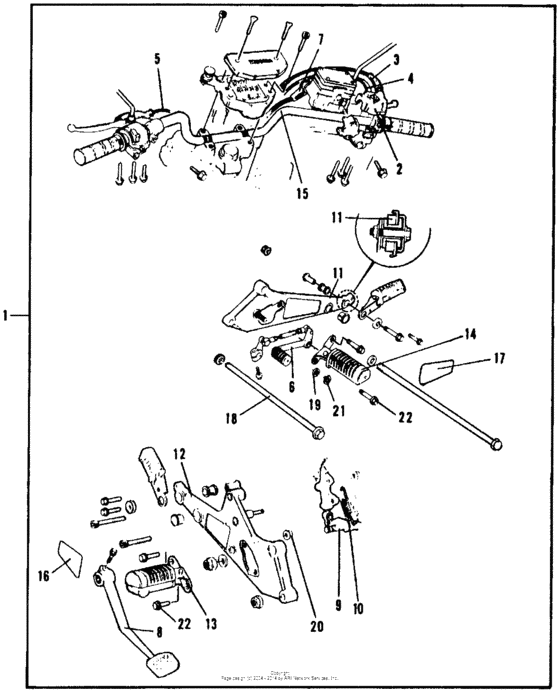

Sport control kit Diagram Honda CB750
- Year
- 1981
- Model code
- CB750F A
- Sales region
- USA
- Frame
- JH2RC040*BM200001 - JH2RC040*BM207766
- Engine Capacity
- 750
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
NI
|
NI
08138-44502 Counterweight kit |
08138-44502 |
US $4.78 |
||
|
1
|
1
08138-44503
Sport control kit
|
08138-44503 |
— | ||
|
2
|
2
0Y138-445-000-1
Start kill swth 750f
|
0Y138-445-000-1 |
— | ||
|
3
|
3
17910-425-611
Cable A, Throttle
|
17910-425-611 |
— | ||
|
4
|
4
17920-425-611
Cable b,throttle
|
17920-425-611 |
— | ||
|
5
|
5
22870-425-611
Cable comp,clutch
|
22870-425-611 |
— | ||
|
6
|
6
24720-426-610
Pedal,gear change
|
24720-426-610 |
— | ||
|
7
|
7
45126-425-614
Hose,b,fr.brake
|
45126-425-614 |
— | ||
|
8
|
8
46500-438-000
Pedal comp.,brake
|
46500-438-000 |
— | ||
|
9
|
9
46510-438-000
Spindle,rr.brake
|
46510-438-000 |
— | ||
|
10
|
10
46514-438-000
Spg.,brake pedal
|
46514-438-000 |
— | ||
|
11
|
11
50610-438-611
Holder,l.step
|
50610-438-611 |
— | ||
|
12
|
12
50640-438-611
Holder,r.step
|
50640-438-611 |
— | ||
|
13
|
13
50620-438-000
Step assy.,r.
|
50620-438-000 |
— | ||
|
14
|
14
50630-438-000
Step assy.,l.
|
50630-438-000 |
— | ||
|
15
|
15
53100-425-610
Pipe.,strg handle
|
53100-425-610 |
— | ||
|
16
|
16
87504-438-610
Mark,muffler cau.
|
87504-438-610 |
— | ||
|
17
|
17
87507-445-770
Mark,caution
|
87507-445-770 |
— | ||
|
18
|
18
90157-438-000
Bolt,eng.hanger
|
90157-438-000 |
— | ||
|
19
|
19
90474-703-000
Washer, 12mm
|
90474-703-000 |
— | ||
|
20
|
20
94050-10000 NutFLANGE, 10MM |
94050-10000 |
from US $0.74 |
||
|
21
|
21
94511-12000 Circlip, external, 12mm |
94511-12000 |
US $0.44 |
||
|
22
|
22
95701-080-250-0 BoltFLANGE, 8X25 |
95701-080-250-0 |
from US $0.74 |
