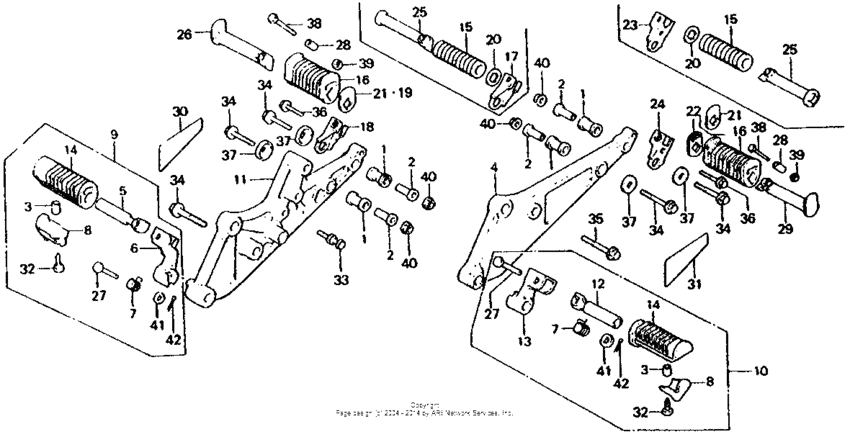

Step Diagram Honda CB750
- Year
- 1981
- Model code
- CB750F A
- Sales region
- USA
- Frame
- JH2RC040*BM200001 - JH2RC040*BM207766
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18421-438-000 Rubber |
18421-438-000 |
from US $6.96 |
||
|
2
|
2
18422-438-000 Collar |
18422-438-000 |
from US $5.37 |
||
|
3
|
3
37243-323-000 Collar,meter set |
37243-323-000 |
US $3.33 |
||
|
4
|
4
50610-445-770
Holder, l. step
|
50610-445-770 |
— | ||
|
5
|
5
50612-438-000
Arm comp.,r.step
|
50612-438-000 |
— | ||
|
6
|
6
50615-445-770
Barcomp.,r.step
|
50615-445-770 |
— | ||
|
7
|
7
50617-438-000
Spg.,step return
|
50617-438-000 |
— | ||
|
8
|
8
50619-425-010 Stopper,rubber |
50619-425-010 |
US $7.10 |
||
|
9
|
9
50620-445-770
Step assy.,r.
|
50620-445-770 |
— | ||
|
10
|
10
50630-445-770
Step assy.,l.main
|
50630-445-770 |
— | ||
|
11
|
11
50640-445-770
Holder,r.step
|
50640-445-770 |
— | ||
|
12
|
12
50642-438-000
Arm comp.,l.step
|
50642-438-000 |
— | ||
|
13
|
13
50643-445-770
Bar, l. step
|
50643-445-770 |
— | ||
|
14
|
14
50661-425-670 Rubber,step |
50661-425-670 |
from US $12.58 |
||
|
16
|
16
50710-461-770 Rubber |
50710-461-770 |
from US $10.18 |
||
|
18
|
18
50711-438-010
Brkt,pillion step
|
50711-438-010 |
— | ||
|
21
|
21
50713-438-010
Wash,pillion step
|
50713-438-010 |
— | ||
|
24
|
24
50714-438-010
Brkt,pillion.step
|
50714-438-010 |
— | ||
|
26
|
26
50715-438-010
Bar,pillion step
|
50715-438-010 |
— | ||
|
27
|
27
50716-445-770
Pin, step bar joint
|
50716-445-770 |
— | ||
|
28
|
28
50717-438-000
Collar,step pivot
|
50717-438-000 |
— | ||
|
29
|
29
50718-438-000 Bar,pillion step |
50718-438-000 |
US $26.18 |
||
|
30
|
30
87504-438-610
Mark,muffler cau.
|
87504-438-610 |
— | ||
|
31
|
31
87507-445-770
Mark,caution
|
87507-445-770 |
— | ||
|
32
|
32
90104-430-000
Bolt,r.bot.case
|
90104-430-000 |
— | ||
|
33
|
33
90117-426-000
Bolt,rr.brake spg
|
90117-426-000 |
— | ||
|
34
|
34
95701-100-500-0 BoltFLANGE, 10X50 |
95701-100-500-0 |
from US $0.93 |
||
|
35
|
35
95701-1004000 Bolt, flange, 10x40 |
95701-1004000 |
from US $0.81 |
||
|
36
|
36
95701-080-250-0 BoltFLANGE, 8X25 |
95701-080-250-0 |
from US $0.74 |
||
|
37
|
37
90557-438-000 Washer,spl.10mm |
90557-438-000 |
US $3.63 |
||
|
38
|
38
92201-06035-0A Bolt, hex. (6x35) |
92201-06035-0A |
from US $0.52 |
||
|
39
|
39
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
40
|
40
94050-10000 NutFLANGE, 10MM |
94050-10000 |
from US $0.74 |
||
|
41
|
41
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
42
|
42
9420116250 Pin, cotter (1.6x25) |
9420116250 |
from US $0.44 |
