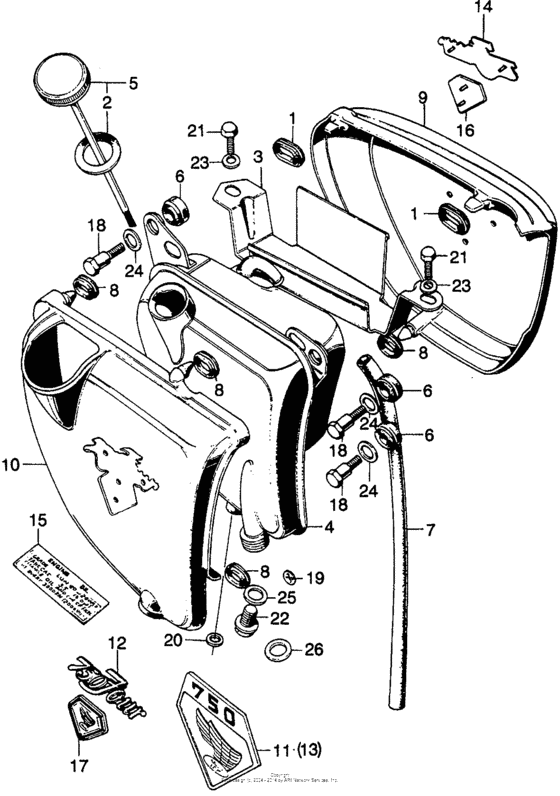

Oil tank + tank & battery cover Diagram Honda CB750
- Model code
- CB750K A
- Sales region
- USA
- Frame
- CB7501000001 -
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17247-240-000 Grommet a, air cleaner caseUse up to Frame SN 1004148 |
17247-240-000 |
from US $4 |
||
|
1
|
1
17247-303-000 Grommet a,cleanerUse from Frame SN 1004149 |
17247-303-000 |
from US $5.48 |
||
|
2
|
2
17631-253-010 Packing,fuel fill |
17631-253-010 |
from US $2.06 |
||
|
3
|
3
50341-300-010
Tray tool
|
50341-300-010 |
— | ||
|
4
|
4
55100-300-050-B
Tank oil
|
55100-300-050-B |
— | ||
|
5
|
5
55105-300-010
Cap,oil.tank
|
55105-300-010 |
— | ||
|
6
|
6
55106-300-000 Rubber oil tank |
55106-300-000 |
from US $6.21 |
||
|
7
|
7
55107-300-000
Pipe oil tank
|
55107-300-000 |
— | ||
|
8
|
8
83551-300-000 Grommet, air cleaner case |
83551-300-000 |
from US $1.28 |
||
|
9
|
9
83600-300-020AZ
Cover battery
|
83600-300-020AZ |
— | ||
|
9
|
9
83600-300-020CM
Cover battery
|
83600-300-020CM |
— | ||
|
9
|
9
83600-300-020CQ
Cover,battery
Use from Frame SN 1019210 |
83600-300-020CQ |
— | ||
|
10
|
10
83700-300-020AZ
Cover oil tank
|
83700-300-020AZ |
— | ||
|
10
|
10
83700-300-020CM
Cover oil tank
|
83700-300-020CM |
— | ||
|
10
|
10
83700-300-020CQ
Cover,oil.tank
|
83700-300-020CQ |
— | ||
|
11
|
11
87123-300-020-B
Emblem,r.cover
Use from Frame SN 1019210 |
87123-300-020-B |
— | ||
|
11
|
11
87123-300-020DM
Emblem,r.cover
|
87123-300-020DM |
— | ||
|
13
|
13
87124-300-020-B
Emblem,l.cover
Use from Frame SN 1019210 |
87124-300-020-B |
— | ||
|
13
|
13
87124-300-020DM
Emblem,l.cover
|
87124-300-020DM |
— | ||
|
15
|
15
87125-300-010
Plate,oil caution
|
87125-300-010 |
— | ||
|
18
|
18
90141-300-000 Bolt 6m/m a |
90141-300-000 |
US $10.80 |
||
|
19
|
19
90313-567-000 NutSPEED, 3MM |
90313-567-000 |
from US $1.55 |
||
|
20
|
20
94109-12000 WasherDRAIN PLUG, 12MM |
94109-12000 |
from US $0.34 |
||
|
21
|
21
92101-06012
Bolt, hex. (6x12)
|
92101-06012 |
— | ||
| replacement | |||||
|
21
|
21
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
21
|
21
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
22
|
22
92800-12000 BoltDRAIN PLUG, 12MM |
92800-12000 |
from US $1.30 |
||
|
23
|
23
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
24
|
24
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
25
|
25
94109-12000 WasherDRAIN PLUG, 12MM |
94109-12000 |
from US $0.34 |
||
|
26
|
26
94109-14000 WASHER, DRAIN PLUG (14MM)DRAIN PLUG WASHER, 14MM |
94109-14000 |
from US $0.38 |
||
