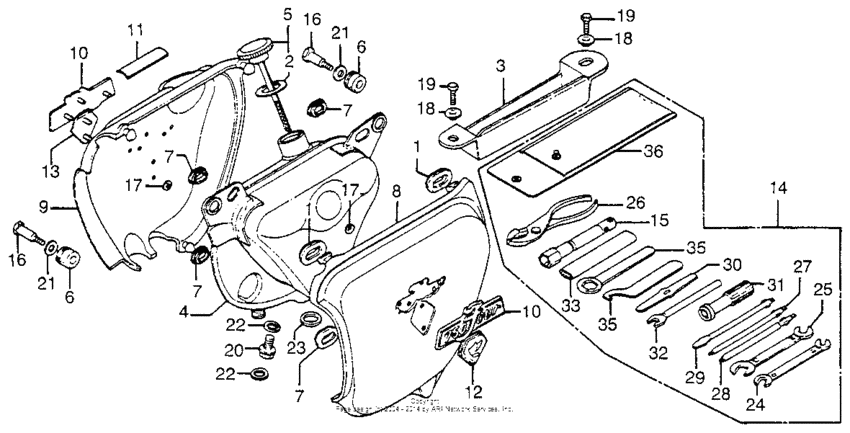

Battery cover + oil tank cover + tools Diagram Honda CB750
- Year
- 1976
- Model code
- CB750K A
- Sales region
- USA
- Frame
- CB7502540001 - CB7502575894
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17247-303-000 Grommet a,cleaner |
17247-303-000 |
from US $5.48 |
||
|
2
|
2
17631-253-010 Packing,fuel fill |
17631-253-010 |
from US $2.06 |
||
|
3
|
3
50341-392-000
Tray, tool
|
50341-392-000 |
— | ||
|
4
|
4
55100-341-000
Tank,oil
|
55100-341-000 |
— | ||
|
5
|
5
55105-300-010
Cap,oil.tank
|
55105-300-010 |
— | ||
|
6
|
6
55106-300-000 Rubber oil tank |
55106-300-000 |
from US $6.21 |
||
|
7
|
7
83551-300-000 Grommet, air cleaner case |
83551-300-000 |
from US $1.28 |
||
|
8
|
8
83600-341-701ZA Cover, *pb-3c-f* |
83600-341-701ZA |
US $257.72 |
||
|
8
|
8
83600-341-701ZB
Cover,*r-6c-s*
|
83600-341-701ZB |
— | ||
|
9
|
9
83700-341-701ZA Cover, *pb-3c-f* |
83700-341-701ZA |
US $239.43 |
||
|
9
|
9
83700-341-701ZB
Cover, *r-6c-s*
|
83700-341-701ZB |
— | ||
|
10
|
10
87123-341-673 Emblem a,battery |
87123-341-673 |
US $55.90 |
||
|
11
|
11
87125-392-771
Plate,oil caution
|
87125-392-771 |
— | ||
|
12
|
12
87126-300-405 Emblem.b cover |
87126-300-405 |
US $37.13 |
||
|
13
|
13
87127-300-405 Emblem.b cover |
87127-300-405 |
US $37.13 |
||
|
14
|
14
89010-341-010
Tool assy
|
89010-341-010 |
— | ||
|
15
|
15
89216-323-000
Wrench,plug
|
89216-323-000 |
— | ||
|
16
|
16
90141-300-000 Bolt 6m/m a |
90141-300-000 |
US $10.80 |
||
|
17
|
17
90313-567-000 NutSPEED, 3MM |
90313-567-000 |
from US $1.55 |
||
|
18
|
18
90512-300-000 Washer (6x20) |
90512-300-000 |
from US $2.22 |
||
|
19
|
19
92101-06016-0A BoltHEX., 6X16 |
92101-06016-0A |
from US $0.44 |
||
|
20
|
20
92800-12000 BoltDRAIN PLUG, 12MM |
92800-12000 |
from US $1.30 |
||
|
21
|
21
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
22
|
22
94109-12000 WasherDRAIN PLUG, 12MM |
94109-12000 |
from US $0.34 |
||
|
23
|
23
94109-14000 WASHER, DRAIN PLUG (14MM)DRAIN PLUG WASHER, 14MM |
94109-14000 |
from US $0.38 |
||
|
24
|
24
99001-10120 Spanner |
99001-10120 |
from US $3.55 |
||
|
25
|
25
99001-14170 Spanner14X17 |
99001-14170 |
from US $4.59 |
||
|
26
|
26
99002-13500
Pliers
|
99002-13500 |
— | ||
| replacement | |||||
|
26
|
26
89210-GBJ-J10 Pliers, 135 (kowa) |
89210-GBJ-J10 |
from US $8.88 |
||
|
27
|
27
99003-10000 Driver1PLUS SCREW(NO.2) |
99003-10000 |
from US $1.41 |
||
|
28
|
28
9900320000 Driver 2, plus screw (no.3) |
9900320000 |
from US $1.55 |
||
|
29
|
29
99003-30000 Driver 3MINUS SCREW (NO.2) |
99003-30000 |
from US $1.41 |
||
|
30
|
30
9900340000 Lever |
9900340000 |
from US $0.98 |
||
|
31
|
31
99003-50000 GripSCREW DRIVER |
99003-50000 |
from US $1.70 |
||
|
32
|
32
9900502000 Bar b, handle |
9900502000 |
from US $2.96 |
||
|
33
|
33
99006-12000 Handle (12mm) |
99006-12000 |
from US $4.29 |
||
|
34
|
34
99006-26000
Eye,wrench,26
|
99006-26000 |
— | ||
|
35
|
35
99007-45000 Spanner,pin,45mm |
99007-45000 |
from US $4.51 |
||
|
36
|
36
89101-ME5-670
Bag, tool
|
89101-ME5-670 |
— | ||
