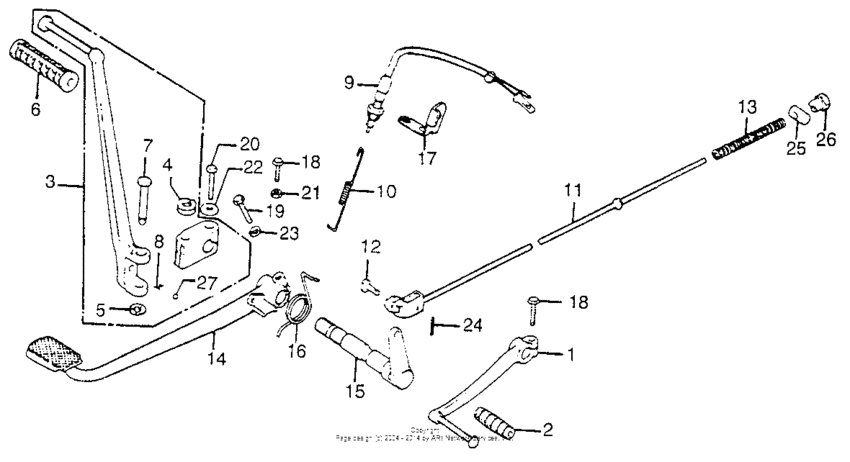

Change pedal + brake pedal + kick arm Diagram Honda CB750
- Year
- 1976
- Model code
- CB750K A
- Sales region
- USA
- Frame
- CB7502540001 - CB7502575894
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24701-300-020
Pedal change
|
24701-300-020 |
— | ||
|
2
|
2
9501140000 Rubber, shift pedal |
9501140000 |
from US $0.74 |
||
|
3
|
3
28240-300-000
Starter,kick
|
28240-300-000 |
— | ||
|
4
|
4
28292-250-010
Spring, starter
|
28292-250-010 |
— | ||
|
5
|
5
28293-250-000
Clip
|
28293-250-000 |
— | ||
|
6
|
6
28311-329-000 Rubber,kick |
28311-329-000 |
from US $7.84 |
||
|
7
|
7
28321-300-000
Pin kick knukle
|
28321-300-000 |
— | ||
|
8
|
8
28333-300-000 Spring |
28333-300-000 |
from US $2.14 |
||
|
9
|
9
35350-KJ9-405 Switch assy.,rr.s |
35350-KJ9-405 |
from US $17 |
||
|
10
|
10
35357-300-000 Spring stop |
35357-300-000 |
US $6.07 |
||
|
11
|
11
43450-405-000
Rod,rr.brake
|
43450-405-000 |
— | ||
|
12
|
12
9501552000 Pin b, brake rod joint |
9501552000 |
from US $1.48 |
||
|
13
|
13
9501473100 Spring a, brake rod |
9501473100 |
from US $0.74 |
||
|
14
|
14
46500-341-670
Pedal,rear brake
|
46500-341-670 |
— | ||
|
15
|
15
46510-300-010 Spindle rr brake |
46510-300-010 |
US $37.67 |
||
|
16
|
16
46514-300-000
Spring brake
|
46514-300-000 |
— | ||
|
17
|
17
50156-300-020
Bracket stop sw
|
50156-300-020 |
— | ||
|
18
|
18
92101-06020-0A BoltHEX., 6X20 |
92101-06020-0A |
from US $1.58 |
||
|
19
|
19
92101-08028-0A Bolt, hex., 8x28 |
92101-08028-0A |
from US $0.59 |
||
|
20
|
20
92101-08028-0B
Bolt, hex. (8x28)
|
92101-08028-0B |
— | ||
|
21
|
21
94002-060-000-S NutHEX., 6MM |
94002-060-000-S |
from US $0.44 |
||
|
22
|
22
9410208200 Washer, flat (8mm) |
9410208200 |
from US $0.44 |
||
|
23
|
23
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
24
|
24
9420116250 Pin, cotter (1.6x25) |
9420116250 |
from US $0.44 |
||
|
25
|
25
9501532001 Joint b, brake arm |
9501532001 |
from US $0.74 |
||
|
26
|
26
9501542000 Nut b, brake rod adjusting |
9501542000 |
from US $1.48 |
||
|
27
|
27
96211-08000 Ball |
96211-08000 |
from US $0.22 |
