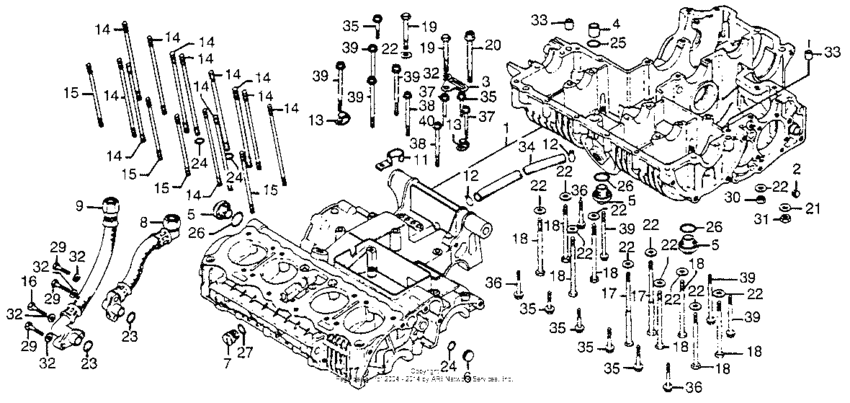

Crankcase Diagram Honda CB750
- Year
- 1976
- Model code
- CB750K A
- Sales region
- USA
- Frame
- CB7502540001 - CB7502575894
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11000-300-315
Crankcase Assy
Use up to Engine SN 2472083 |
11000-300-315 |
— | ||
|
1
|
1
11000-341-010
Crankcase set
Use from Engine SN 2472084 |
11000-341-010 |
— | ||
|
2
|
2
11209-300-000
Plug (8.5mm)
|
11209-300-000 |
— | ||
|
3
|
3
11355-300-000
Guide, overflow
|
11355-300-000 |
— | ||
|
4
|
4
15326-300-000
Collar,oil path
|
15326-300-000 |
— | ||
|
5
|
5
15331-300-000 Cap,oil path |
15331-300-000 |
US $19.58 |
||
|
6
|
6
15336-300-010
Plug,oil path
|
15336-300-010 |
— | ||
|
7
|
7
15337-300-010
Plug, oil tube
|
15337-300-010 |
— | ||
|
8
|
8
15510-300-017
Hose a,oil
|
15510-300-017 |
— | ||
|
9
|
9
15520-300-007
Comp,b,oil hose
|
15520-300-007 |
— | ||
|
11
|
11
15765-341-000
Cramper,tube
|
15765-341-000 |
— | ||
|
12
|
12
15772-551-000 ClipBREATHER TUBE |
15772-551-000 |
from US $3.09 |
||
|
12
|
12
15772-551-680 Clip,tube |
15772-551-680 |
US $8.91 |
||
|
13
|
13
32111-300-000
Cramper,cord
|
32111-300-000 |
— | ||
|
14
|
14
90033-300-030
Bolt.a.stud
|
90033-300-030 |
— | ||
|
15
|
15
90034-300-040
Boltbcylinderstud
|
90034-300-040 |
— | ||
|
16
|
16
93401-0602500 Bolt-washer, 6x25 |
93401-0602500 |
from US $0.59 |
||
|
17
|
17
90041-300-000
Bolt hex,8x140
|
90041-300-000 |
— | ||
|
18
|
18
92101-08120-0H Bolt, hex. (8x120) |
92101-08120-0H |
from US $1.33 |
||
|
19
|
19
90046-300-000 Bolt hex,8x56Use up to Engine SN 2472083 |
90046-300-000 |
US $6.33 |
||
|
19
|
19
95701-0805500 Bolt, flange, 8x55Use from Engine SN 2472084 |
95701-0805500 |
from US $0.86 |
||
|
20
|
20
90048-300-000 Bolt hex,10x82 |
90048-300-000 |
US $4 |
||
|
21
|
21
90403-ML4-610 Washer (10mm) |
90403-ML4-610 |
from US $4.44 |
||
|
22
|
22
90485-035-000 Washer, 14m/mUse up to Engine SN 2474688 |
90485-035-000 |
from US $2.03 |
||
|
23
|
23
91302-377-000 O-ring (15x2.5) |
91302-377-000 |
from US $5.18 |
||
|
24
|
24
91310-426-000 O-ring (11x2.5) |
91310-426-000 |
from US $4.23 |
||
|
25
|
25
91307-KF0-003 O-ring (18x3) |
91307-KF0-003 |
from US $1.42 |
||
|
25
|
25
91307-035-000 O-ring (18x3) |
91307-035-000 |
from US $4 |
||
|
26
|
26
94608-40000 O ring 19.4x2.8 |
94608-40000 |
from US $0.98 |
||
|
27
|
27
91319-300-000 O-ring (13x2.5) |
91319-300-000 |
from US $5.62 |
||
|
29
|
29
92101-06025-0A Bolt, hex., 6x25 |
92101-06025-0A |
from US $0.52 |
||
|
30
|
30
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
31
|
31
94001-100-000-S NutHEX., 10MM |
94001-100-000-S |
from US $0.44 |
||
|
32
|
32
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
33
|
33
94301-10160 Dowel pin10X16 |
94301-10160 |
from US $1.04 |
||
|
34
|
34
95005-120-0120M
Bulk hose (12x1000)
|
95005-120-0120M |
— | ||
|
35
|
35
95701-0604000 Bolt, flange, 6x40 |
95701-0604000 |
from US $0.62 |
||
|
36
|
36
95701-060-500-0 BoltFLANGE, 6X50 |
95701-060-500-0 |
from US $0.78 |
||
|
37
|
37
95700-060-560-0
Bolt,flange,6x56
|
95700-060-560-0 |
— | ||
|
38
|
38
95701-0608000 Bolt, flange (6x80)Use up to Engine SN 2472083 |
95701-0608000 |
from US $0.86 |
||
|
39
|
39
95701-061-000-0 Bolt, flange, 6x100 |
95701-061-000-0 |
from US $0.86 |
||
|
40
|
40
95701-0808000 Bolt, flange, 8x80Use from Engine SN 2472084 |
95701-0808000 |
from US $0.89 |
