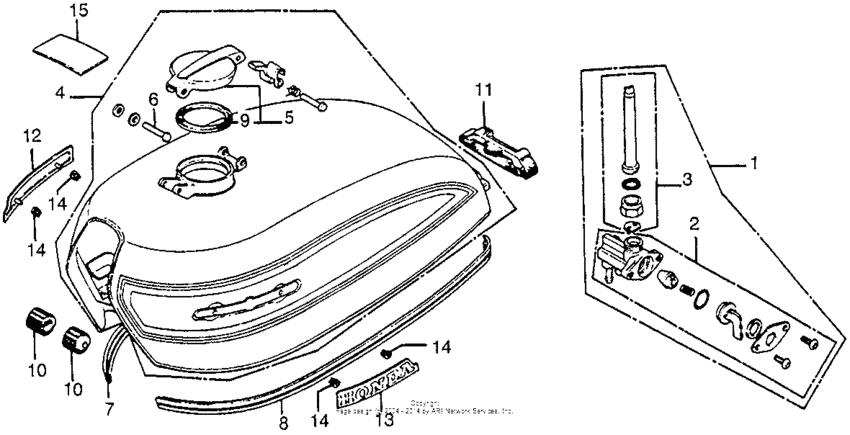

Fuel tank Diagram Honda CB750
- Year
- 1976
- Model code
- CB750K A
- Sales region
- USA
- Frame
- CB7502540001 - CB7502575894
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16950-341-671 Cock.fuel,cb750k5 |
16950-341-671 |
from US $95.27 |
||
|
2
|
2
16951-341-671
Body set
|
16951-341-671 |
— | ||
|
3
|
3
16952-341-671 Strainer set |
16952-341-671 |
US $49.88 |
||
|
4
|
4
17050-341-770ZB
Tank,fuel*r-6c-s*
|
17050-341-770ZB |
— | ||
|
4
|
4
17500-341-770ZA Tank, *pb-3c-f* |
17500-341-770ZA |
US $2,010.13 |
||
|
5
|
5
17510-323-310 Cap,fuel tank |
17510-323-310 |
US $68.29 |
||
|
6
|
6
17514-323-300
Pin b,fuel cap
|
17514-323-300 |
— | ||
|
7
|
7
17052-300-000
Mole set,tank
|
17052-300-000 |
— | ||
|
8
|
8
17052-300-000
Mole set,tank
|
17052-300-000 |
— | ||
|
9
|
9
17534-323-300 Packing,fuel cap |
17534-323-300 |
from US $11.37 |
||
|
9
|
9
17550-377-315 Check assy.,cap |
17550-377-315 |
US $68.68 |
||
|
10
|
10
17611-283-010 Cushion, tank |
17611-283-010 |
from US $10.15 |
||
|
11
|
11
17613-292-000 Cushion,tank rear |
17613-292-000 |
from US $14.69 |
||
|
12
|
12
87121-341-700
Emblem,r.fueltank
|
87121-341-700 |
— | ||
|
13
|
13
87122-341-700
Emblem,l.fueltank
|
87122-341-700 |
— | ||
|
14
|
14
87311-516-000
Nut,rear ornament
|
87311-516-000 |
— | ||
| replacement | |||||
|
14
|
14
87311-634-600 Nut emblem |
87311-634-600 |
from US $2.59 |
||
|
14
|
14
87311-634-600 Nut emblem |
87311-634-600 |
from US $2.59 |
||
|
15
|
15
87560-375-680ZF Mark (type-w) Remember (Clear-white) |
87560-375-680ZF |
from US $5.77 |
||
