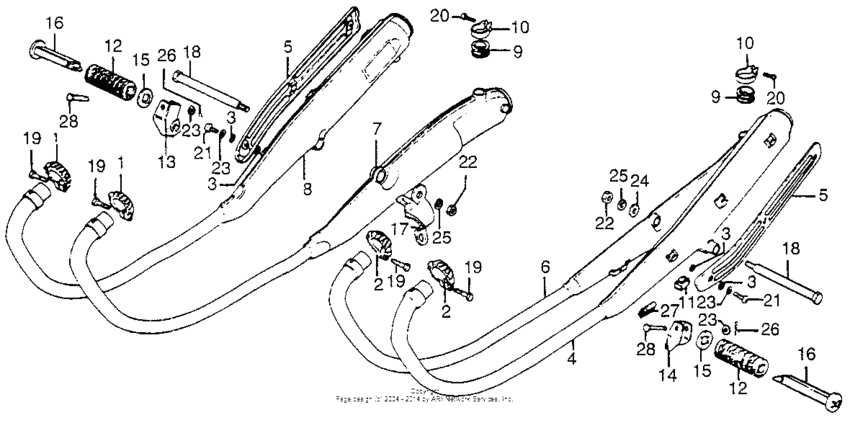

Muffler Diagram Honda CB750
- Year
- 1976
- Model code
- CB750K A
- Sales region
- USA
- Frame
- CB7502540001 - CB7502575894
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18231-300-010 Joint r exhaust |
18231-300-010 |
US $54.94 |
||
|
2
|
2
18232-300-010 Joint l exhaust |
18232-300-010 |
US $54.94 |
||
|
3
|
3
18292-167-890 Packing, protector |
18292-167-890 |
from US $2.89 |
||
|
4
|
4
18300-341-907
Muffler comp.,ex.
|
18300-341-907 |
— | ||
|
5
|
5
18315-300-020 Protecter,muffler |
18315-300-020 |
US $164.75 |
||
|
6
|
6
18350-341-907
Muffler comp.,ex.
|
18350-341-907 |
— | ||
|
7
|
7
18400-341-907
Muffler comp.,ex.
|
18400-341-907 |
— | ||
|
8
|
8
18450-341-907
Muffler comp.,ex.
|
18450-341-907 |
— | ||
|
9
|
9
18472-300-000 Tube muffler |
18472-300-000 |
from US $17.14 |
||
|
10
|
10
18473-300-000 Band muffler |
18473-300-000 |
from US $14.28 |
||
|
11
|
11
9501161000 Rubber a, stand stopper |
9501161000 |
from US $0.74 |
||
|
12
|
12
50716-371-660 Rub, pillion footpeg |
50716-371-660 |
from US $17.32 |
||
|
13
|
13
50711-341-670
Bracket,r.pillion
|
50711-341-670 |
— | ||
|
14
|
14
50712-341-670
Bracket,l.pillion
|
50712-341-670 |
— | ||
|
15
|
15
50712-377-000 Washer,pillion |
50712-377-000 |
US $5.48 |
||
|
16
|
16
50715-MA6-000 Bar,pillion step |
50715-MA6-000 |
from US $22.03 |
||
|
17
|
17
55109-341-900
Guide,breather
|
55109-341-900 |
— | ||
|
18
|
18
90146-300-020 Bolt,pillion step |
90146-300-020 |
from US $29.78 |
||
|
19
|
19
92101-08032-0B Bolt, hex. (8x32) |
92101-08032-0B |
from US $0.90 |
||
|
20
|
20
93500-050-160-A Screw |
93500-050-160-A |
from US $0.37 |
||
|
21
|
21
93500-060124J Screw, pan, 6x12 |
93500-060124J |
from US $0.81 |
||
|
22
|
22
94030-12000 Nut, hex., 12mm |
94030-12000 |
from US $0.59 |
||
|
23
|
23
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
24
|
24
94102-12000 WasherPLAIN, 12MM |
94102-12000 |
from US $0.44 |
||
|
25
|
25
94111-12000 WasherSPRING, 12MM |
94111-12000 |
from US $0.44 |
||
|
26
|
26
9420116250 Pin, cotter (1.6x25) |
9420116250 |
from US $0.44 |
||
|
27
|
27
95011-64000 Rubber d,stand |
95011-64000 |
from US $1.33 |
||
|
28
|
28
9501583000 Pin c |
9501583000 |
from US $1.55 |
