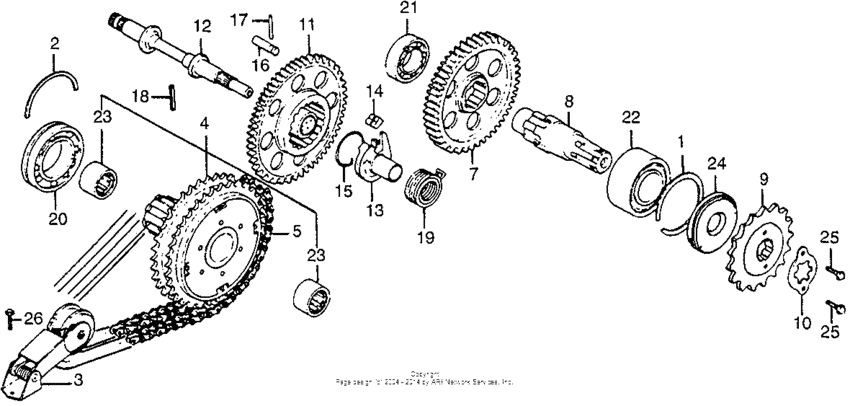

Primary chain + kick starter + final shaft Diagram Honda CB750
- Year
- 1976
- Model code
- CB750K A
- Sales region
- USA
- Frame
- CB7502540001 - CB7502575894
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13491-300-000
Ring,set.66.5mm
|
13491-300-000 |
— | ||
|
2
|
2
13496-300-000
Ring b,set
|
13496-300-000 |
— | ||
|
3
|
3
13620-300-010
Tensioner primary
|
13620-300-010 |
— | ||
|
4
|
4
23110-392-000
Sprocket,driven
|
23110-392-000 |
— | ||
|
5
|
5
23131-300-315 Chain set,primary |
23131-300-315 |
from US $91.12 |
||
|
7
|
7
23511-300-020 Gear (56t) |
23511-300-020 |
US $133.74 |
||
|
8
|
8
23521-392-000
Shaft,driven
|
23521-392-000 |
— | ||
|
9
|
9
23801-300-620
Sprocket,drive
|
23801-300-620 |
— | ||
|
10
|
10
23811-292-000 Plate,fixing |
23811-292-000 |
from US $3.62 |
||
|
11
|
11
28210-300-000 Gear,kick starter |
28210-300-000 |
US $171.16 |
||
|
12
|
12
28250-300-020
Spindle,kick
|
28250-300-020 |
— | ||
|
13
|
13
28271-393-000
Flange,kick stat
Use up to Engine SN 2456701 |
28271-393-000 |
— | ||
|
14
|
14
28252-300-020
Pawl,kick starter
|
28252-300-020 |
— | ||
|
15
|
15
28253-300-000
Spring,starter
|
28253-300-000 |
— | ||
|
16
|
16
28254-300-000
Pin,kick stopper
|
28254-300-000 |
— | ||
|
17
|
17
28255-300-000
Pin,4x37
|
28255-300-000 |
— | ||
|
18
|
18
28256-300-000
Pin,6x35
|
28256-300-000 |
— | ||
|
19
|
19
28261-300-010
Spring,return
|
28261-300-010 |
— | ||
|
20
|
20
91004-300-000
B/brg rad n/com
|
91004-300-000 |
— | ||
|
21
|
21
96100-620-500-0 Bearing, radial ball, 6205 |
96100-620-500-0 |
from US $8.14 |
||
|
21
|
21
96100-6205010 Bearing, radial ball, 6205 |
96100-6205010 |
from US $8.55 |
||
|
22
|
22
91012-MG7-003 Bearing (5206) |
91012-MG7-003 |
from US $31.28 |
||
|
23
|
23
91010-300-008
Bearing (25x32x20)
|
91010-300-008 |
— | ||
|
24
|
24
91205-300-005 Oil seal |
91205-300-005 |
from US $18.63 |
||
|
25
|
25
92101-06012
Bolt, hex. (6x12)
|
92101-06012 |
— | ||
| replacement | |||||
|
25
|
25
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
25
|
25
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
26
|
26
92101-06016-0A BoltHEX., 6X16 |
92101-06016-0A |
from US $0.44 |
||
