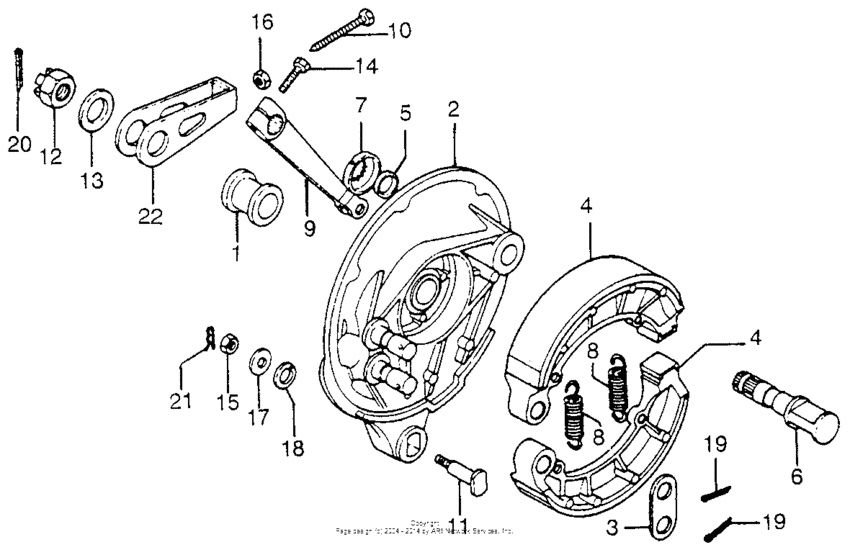

Rear brake panel Diagram Honda CB750
- Year
- 1976
- Model code
- CB750K A
- Sales region
- USA
- Frame
- CB7502540001 - CB7502575894
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42313-300-020 Collar rr brake |
42313-300-020 |
US $15.83 |
||
|
2
|
2
43100-341-010
Panel,rr.brake
Use up to Frame SN 2580923 |
43100-341-010 |
— | ||
|
2
|
2
43100-341-030
Panel comp.,brake
Use from Frame SN 2580924 |
43100-341-030 |
— | ||
|
3
|
3
43102-319-000 Washer, anchor pin |
43102-319-000 |
from US $3.63 |
||
|
4
|
4
06430-393-405 Shoe kit, brake |
06430-393-405 |
US $75.48 |
||
|
5
|
5
43134-300-000 Dust seal, brake cam |
43134-300-000 |
from US $2.44 |
||
|
6
|
6
43141-341-000
Cam,rear brake
Use up to Frame SN 2580923 |
43141-341-000 |
— | ||
|
6
|
6
43141-341-020
Cam,rear brake
Use from Frame SN 2580924 |
43141-341-020 |
— | ||
|
7
|
7
43145-341-000
Plate,brake
Use up to Frame SN 2580923 |
43145-341-000 |
— | ||
|
7
|
7
43145-341-010
Rod,rear brake
Use from Frame SN 2580924 |
43145-341-010 |
— | ||
|
8
|
8
43151-346-000 Spring, rr. |
43151-346-000 |
from US $5.37 |
||
|
9
|
9
43410-341-700
Arm,rear brake
Use up to Frame SN 2580923 |
43410-341-700 |
— | ||
|
9
|
9
43410-341-710 Arm, rr. brakeUse from Frame SN 2580924 |
43410-341-710 |
US $34.51 |
||
|
10
|
10
90119-300-000 Bolt,chain adjust |
90119-300-000 |
from US $5.77 |
||
|
11
|
11
90127-323-000
Bolt,rear brake
|
90127-323-000 |
— | ||
|
12
|
12
90306-329-770 Nut, rr. wheel axle |
90306-329-770 |
from US $6.81 |
||
|
13
|
13
90523-292-000
Washer,18.5x38
|
90523-292-000 |
— | ||
|
14
|
14
92101-08022-0A Bolt, hex. (8x22) |
92101-08022-0A |
US $0.59 |
||
|
15
|
15
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
16
|
16
94002-080-000-S NutHEX., 8MM |
94002-080-000-S |
from US $0.44 |
||
|
17
|
17
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
18
|
18
94111-10000 WasherSPRING, 10MM |
94111-10000 |
from US $0.44 |
||
|
19
|
19
94201-25300 Pin, split, 2.5x30 |
94201-25300 |
from US $0.44 |
||
|
20
|
20
9420140300 Pin, split, 4.0x30 |
9420140300 |
from US $0.44 |
||
|
21
|
21
94251-08000 PinLOCK, 8MM |
94251-08000 |
from US $0.59 |
||
|
22
|
22
95014-19000 Adjuster,chain |
95014-19000 |
from US $5.48 |
