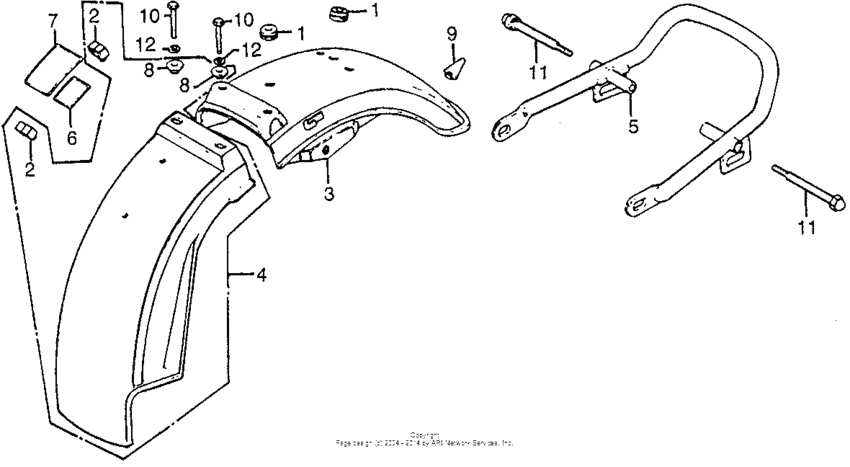

Rear fender Diagram Honda CB750
- Year
- 1976
- Model code
- CB750K A
- Sales region
- USA
- Frame
- CB7502540001 - CB7502575894
- Engine Capacity
- 750
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32983-011-000 Grommet, harn |
32983-011-000 |
from US $2.81 |
||
|
2
|
2
32985-300-000 Grommet, cable |
32985-300-000 |
from US $3.66 |
||
|
3
|
3
80100-341-000
Fender a,rear
|
80100-341-000 |
— | ||
|
4
|
4
80105-341-010
Fender b, rear
Use up to Frame SN 2557627 |
80105-341-010 |
— | ||
|
5
|
5
84101-341-770
Bumper,rear
|
84101-341-770 |
— | ||
|
6
|
6
87506-341-670
Mark,battery
|
87506-341-670 |
— | ||
|
7
|
7
87512-371-670
Mark,caution
|
87512-371-670 |
— | ||
|
8
|
8
90513-323-000 Washer (6x9) |
90513-323-000 |
from US $2.34 |
||
|
9
|
9
90899-323-610
Plug,corn
|
90899-323-610 |
— | ||
|
10
|
10
92101-06028-0A Bolt, hex. (6x28) |
92101-06028-0A |
from US $0.51 |
||
|
11
|
11
92600-08080-0B Bolt,hex.,cap |
92600-08080-0B |
US $2.29 |
||
|
12
|
12
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
