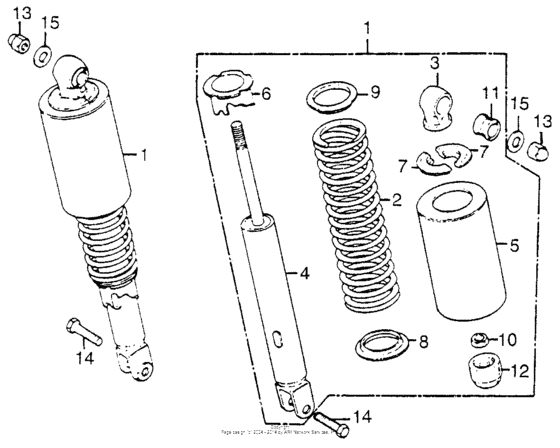

Rear shock absorber Diagram Honda CB750
- Year
- 1976
- Model code
- CB750K A
- Sales region
- USA
- Frame
- CB7502540001 - CB7502575894
- Engine Capacity
- 750
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52400-341-911XW
Cushion,rear
|
52400-341-911XW |
— | ||
|
2
|
2
52401-341-000 Spring,rr.cushion |
52401-341-000 |
US $77.62 |
||
|
3
|
3
52403-312-000 Joint,upper |
52403-312-000 |
US $20.77 |
||
|
4
|
4
52410-341-911
Damper,rear
|
52410-341-911 |
— | ||
|
5
|
5
52421-300-000XW
Case rr cushion
|
52421-300-000XW |
— | ||
|
6
|
6
52422-390-003 Adjuster, spring |
52422-390-003 |
US $29.99 |
||
|
7
|
7
52424-331-003 Stopper,cushion |
52424-331-003 |
US $10.23 |
||
|
8
|
8
52458-329-000 Seat,under spring |
52458-329-000 |
US $5.40 |
||
|
9
|
9
52459-312-003
Seat,rr.cushion
|
52459-312-003 |
— | ||
|
10
|
10
94002-100-000-S NutHEX., 10MM |
94002-100-000-S |
from US $0.55 |
||
|
11
|
11
52484-292-000 Rubber, joint |
52484-292-000 |
from US $4 |
||
|
12
|
12
52517-358-771
Rubber, stopper
|
52517-358-771 |
— | ||
|
13
|
13
90309-315-000 Nut, flange (10mm) |
90309-315-000 |
from US $4.97 |
||
|
14
|
14
93201-100-320-B Bolt, hex. (10x32) |
93201-100-320-B |
from US $0.96 |
||
|
15
|
15
94101-10200 Washer, plain (10mm) |
94101-10200 |
from US $0.52 |
