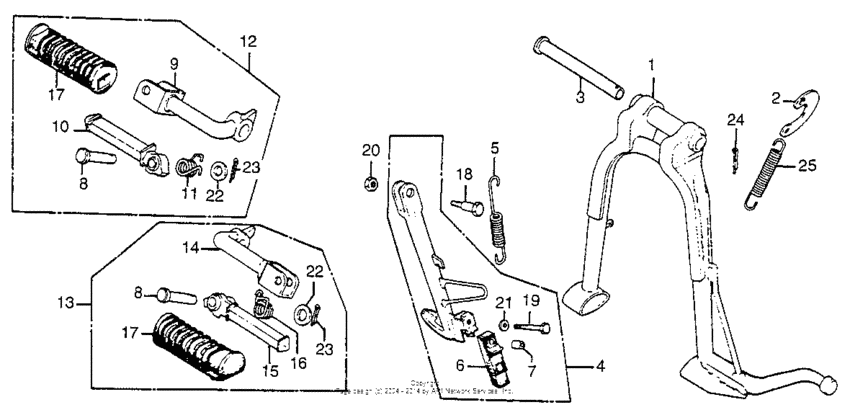

Stand + step Diagram Honda CB750
- Year
- 1976
- Model code
- CB750K A
- Sales region
- USA
- Frame
- CB7502540001 - CB7502575894
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50500-300-020-B
Stand main
|
50500-300-020-B |
— | ||
|
2
|
2
50523-300-010 Plate main stand |
50523-300-010 |
US $8.87 |
||
|
3
|
3
50526-300-000 Pipe |
50526-300-000 |
US $16.46 |
||
|
4
|
4
50540-341-670
Bar,side stand
|
50540-341-670 |
— | ||
|
5
|
5
9501472402 Spring d, side stand |
9501472402 |
from US $1.63 |
||
|
6
|
6
50548-356-700 Rubber, stand |
50548-356-700 |
from US $7.15 |
||
|
7
|
7
50549-356-700 Collar |
50549-356-700 |
from US $2.96 |
||
|
8
|
8
50603-033-010 Pin, step bar joint |
50603-033-010 |
from US $3.70 |
||
|
9
|
9
50615-341-670
Bar,r-step
|
50615-341-670 |
— | ||
|
10
|
10
50616-310-000 Arm,r,step |
50616-310-000 |
US $36.72 |
||
|
11
|
11
50617-300-670
Spring, r
|
50617-300-670 |
— | ||
|
12
|
12
50630-341-670
Step assy.,r
|
50630-341-670 |
— | ||
|
13
|
13
50640-300-670-B
Step assy left
|
50640-300-670-B |
— | ||
|
14
|
14
50641-300-670-B
Bar l step
|
50641-300-670-B |
— | ||
|
15
|
15
50642-310-000
Arm,l,step
|
50642-310-000 |
— | ||
|
16
|
16
50644-300-670
Spring, l
|
50644-300-670 |
— | ||
|
17
|
17
50661-310-000 Rubber,step |
50661-310-000 |
from US $15.33 |
||
|
18
|
18
90108-283-000 Screw,pivot |
90108-283-000 |
from US $6.96 |
||
|
19
|
19
92101-06028-0A Bolt, hex. (6x28) |
92101-06028-0A |
from US $0.51 |
||
|
20
|
20
94002-100-000-S NutHEX., 10MM |
94002-100-000-S |
from US $0.55 |
||
|
21
|
21
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
22
|
22
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
23
|
23
9420116250 Pin, cotter (1.6x25) |
9420116250 |
from US $0.44 |
||
|
24
|
24
94201-25300 Pin, split, 2.5x30 |
94201-25300 |
from US $0.44 |
||
|
25
|
25
9501471702 Spring g, main stand |
9501471702 |
from US $3.18 |
