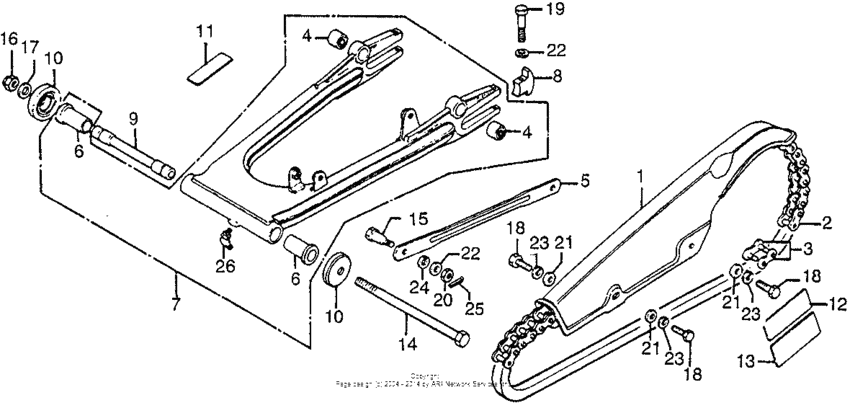

Swingarm + drive chain Diagram Honda CB750
- Year
- 1976
- Model code
- CB750K A
- Sales region
- USA
- Frame
- CB7502540001 - CB7502575894
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
40510-341-010-B
Case,drive chain
|
40510-341-010-B |
— | ||
|
2
|
2
40530-341-900
Chain,drive
|
40530-341-900 |
— | ||
|
3
|
3
40531-392-305
Joint,drive chain
(Optional). |
40531-392-305 |
— | ||
|
4
|
4
40548-268-000 Bush, rubber |
40548-268-000 |
from US $7.10 |
||
|
5
|
5
43431-286-010
Arm,brake stopper
|
43431-286-010 |
— | ||
|
6
|
6
52108-457-300 Bush,rr.forkpivot |
52108-457-300 |
from US $33.56 |
||
|
7
|
7
52110-341-900ZA
Swingarm, rr. *nh1*
|
52110-341-900ZA |
— | ||
|
8
|
8
52136-300-000
Stopper chain
|
52136-300-000 |
— | ||
|
9
|
9
52141-390-010
Collar,rr. fork
|
52141-390-010 |
— | ||
|
10
|
10
52144-362-000 Cap,dust seal |
52144-362-000 |
US $16.59 |
||
|
11
|
11
87504-028-670 Mark, caution |
87504-028-670 |
from US $4.57 |
||
|
12
|
12
87505-341-910
Mark, tire caution
|
87505-341-910 |
— | ||
|
13
|
13
87507-392-670
Mark,caution
|
87507-392-670 |
— | ||
|
14
|
14
90121-426-000
Bolt,rr.forkpivot
|
90121-426-000 |
— | ||
|
15
|
15
90133-286-000 Bolt, rr |
90133-286-000 |
from US $4.59 |
||
|
16
|
16
90354-268-000 Nut, self lock |
90354-268-000 |
from US $8.44 |
||
|
17
|
17
90526-268-000 Washer, rr. |
90526-268-000 |
from US $2.74 |
||
|
18
|
18
92101-06014-0A Bolt, hex., 6x14 |
92101-06014-0A |
from US $0.47 |
||
|
19
|
19
92101-08040-0A Bolt, hex., 8x40 |
92101-08040-0A |
from US $0.59 |
||
|
20
|
20
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
21
|
21
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
22
|
22
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
23
|
23
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.37 |
||
|
24
|
24
94111-10000 WasherSPRING, 10MM |
94111-10000 |
from US $0.44 |
||
|
25
|
25
94201-29220
Pin
|
94201-29220 |
— | ||
| replacements | |||||
|
25
|
25
94201-20220 Pin 2.0X22SPLIT, 2.0X22 |
94201-20220 |
US $0.44 |
||
|
25
|
25
9420120350 Pin, cotter (2.0x35) |
9420120350 |
from US $0.44 |
||
|
25
|
25
94201-20220 Pin 2.0X22SPLIT, 2.0X22 |
94201-20220 |
US $0.44 |
||
|
25
|
25
9420120350 Pin, cotter (2.0x35) |
9420120350 |
from US $0.44 |
||
|
26
|
26
9620180000 Fitting (b.76s) |
9620180000 |
from US $1.85 |
||
