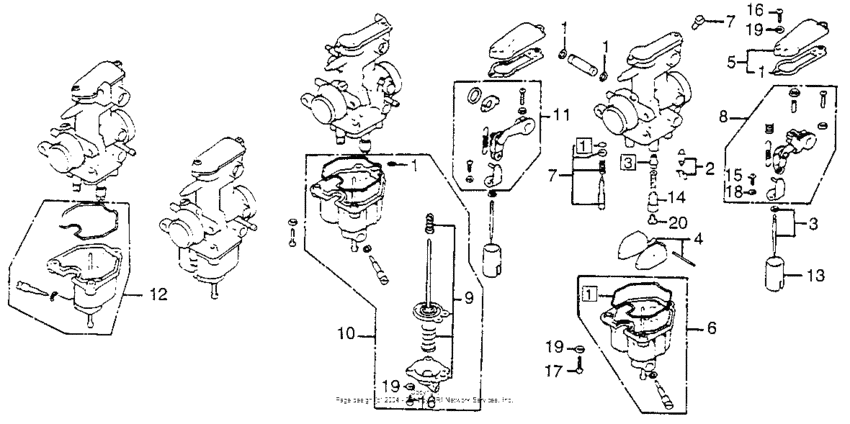

Carburetor components Diagram Honda CB750
- Year
- 1977
- Model code
- CB750K A
- Sales region
- USA
- Frame
- CB7502700009 - CB7502729534
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16010-405-004 Packing set |
16010-405-004 |
from US $21.70 |
||
|
2
|
2
16011-KCK-910 Valve set, floatUse up to Engine SN PD41A B |
16011-KCK-910 |
from US $41.85 |
||
|
3
|
3
16012-405-004
Needle set,jet
Use up to Engine SN PD41A A |
16012-405-004 |
— | ||
|
3
|
3
16012-405-014
Needle set,jet
Use from Engine SN PD41A B |
16012-405-014 |
— | ||
|
4
|
4
16013-405-004 Float set |
16013-405-004 |
from US $36.58 |
||
|
5
|
5
16014-KCE-771
Top set
|
16014-KCE-771 |
— | ||
|
6
|
6
16015-KN4-A10 Chamber set, float |
16015-KN4-A10 |
from US $82.96 |
||
|
7
|
7
16016-402-004 Screw set aUse from Engine SN PD41A B |
16016-402-004 |
from US $17.27 |
||
|
7
|
7
16016-405-004
Screw set a
Use up to Engine SN PD41A A |
16016-405-004 |
— | ||
| replacement | |||||
|
7
|
7
16016-405-305
Screw set
Use up to Engine SN PD41A A |
16016-405-305 |
— | ||
|
7
|
7
16016-405-305
Screw set
Use up to Engine SN PD41A A |
16016-405-305 |
— | ||
|
8
|
8
16018-405-004
Arm set a,link
Use up to Engine SN PD41A A |
16018-405-004 |
— | ||
|
8
|
8
16018-410-004
Arm set a,link
Use from Engine SN PD41A B |
16018-410-004 |
— | ||
|
9
|
9
16021-393-004 Diaphragm,pump |
16021-393-004 |
US $104.20 |
||
|
10
|
10
16023-393-004
Chbr.set b,float
Use up to Engine SN PD41A A |
16023-393-004 |
— | ||
|
11
|
11
16031-393-014
Arm set b,link
Use from Engine SN PD41A B |
16031-393-014 |
— | ||
|
11
|
11
16031-405-004
Arm set b, link
Use up to Engine SN PD41A A |
16031-405-004 |
— | ||
|
12
|
12
16015-KFC-910 Chamber set, float |
16015-KFC-910 |
US $85 |
||
|
13
|
13
16111-405-004
Valve, throttle
Use up to Engine SN PD41A A |
16111-405-004 |
— | ||
|
13
|
13
16111-410-004
Valve,throttle
Use from Engine SN PD41A B |
16111-410-004 |
— | ||
|
14
|
14
16165-405-004
Holder,jet needle
|
16165-405-004 |
— | ||
|
15
|
15
93500-030080H Screw, pan, 3x8 |
93500-030080H |
from US $0.37 |
||
|
16
|
16
93500-040-120-H ScrewPAN, 4X12 |
93500-040-120-H |
from US $0.37 |
||
|
17
|
17
93500-040-160-H ScrewPAN, 4X16 |
93500-040-160-H |
from US $0.37 |
||
|
18
|
18
94111-03800 WasherSPRING, 3MM |
94111-03800 |
from US $0.37 |
||
|
19
|
19
94111-04800 WasherSPRING, 4MM |
94111-04800 |
from US $0.37 |
||
|
20
|
20
99101-GHB-1150
Jet, main (#115)
|
99101-GHB-1150 |
— | ||
| replacement | |||||
|
20
|
20
99101-MAZ-1150 Jet, main (#115) |
99101-MAZ-1150 |
from US $5.33 |
||
|
20
|
20
99101-MAZ-1150 Jet, main (#115) |
99101-MAZ-1150 |
from US $5.33 |
||
