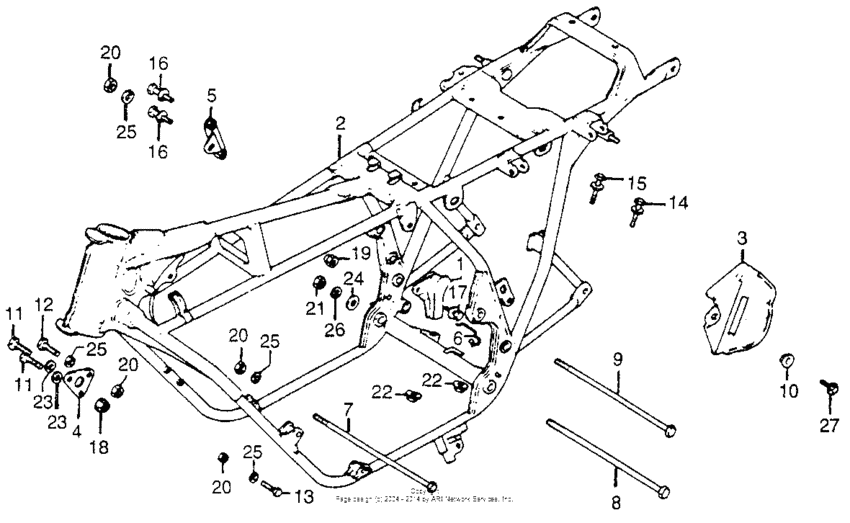

Frame Diagram Honda CB750
- Year
- 1977
- Model code
- CB750K A
- Sales region
- USA
- Frame
- CB7502700009 - CB7502729534
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
50100-405-671ZA
Frame *nh1*
|
50100-405-671ZA |
— | ||
|
3
|
3
50260-405-000
Protector,chain
|
50260-405-000 |
— | ||
|
4
|
4
50351-405-970-B
Brkt,eng.hanger
|
50351-405-970-B |
— | ||
|
5
|
5
50356-392-000
Bracket,hanger
|
50356-392-000 |
— | ||
|
6
|
6
50527-405-000
Guide,drain tube
|
50527-405-000 |
— | ||
|
7
|
7
90152-300-010
Bolt a,hanger
|
90152-300-010 |
— | ||
|
8
|
8
90155-392-000
Bolt.rr.engine lo
|
90155-392-000 |
— | ||
|
9
|
9
90156-300-000
Bolt c,hanger
|
90156-300-000 |
— | ||
|
10
|
10
90513-405-000 Washer, 6x9 |
90513-405-000 |
from US $2.44 |
||
|
11
|
11
92200-08060-0A
Bolt, hex. 8x60
|
92200-08060-0A |
— | ||
|
12
|
12
92200-10050-0A Bolt,hex 10x50 |
92200-10050-0A |
US $0.81 |
||
|
13
|
13
92200-10080-0A
Bolt 10x80
|
92200-10080-0A |
— | ||
|
14
|
14
93481-080-400-0 Bolt-washer,8x40 |
93481-080-400-0 |
US $0.74 |
||
|
15
|
15
93481-080-450-0 Bolt-washer,8x45 |
93481-080-450-0 |
US $0.81 |
||
|
16
|
16
93402-0802000 Bolt-washer (8x20) |
93402-0802000 |
from US $0.67 |
||
|
18
|
18
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
20
|
20
9403010200 Nut, hex., 10mm |
9403010200 |
from US $0.52 |
||
|
21
|
21
9403012200 Nut, hex., 12mm |
9403012200 |
from US $0.59 |
||
|
22
|
22
94050-08000 NutFLANGE, 8MM |
94050-08000 |
from US $0.52 |
||
|
23
|
23
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
24
|
24
94102-12000 WasherPLAIN, 12MM |
94102-12000 |
from US $0.44 |
||
|
25
|
25
94111-10000 WasherSPRING, 10MM |
94111-10000 |
from US $0.44 |
||
|
26
|
26
94111-12000 WasherSPRING, 12MM |
94111-12000 |
from US $0.44 |
||
|
27
|
27
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
