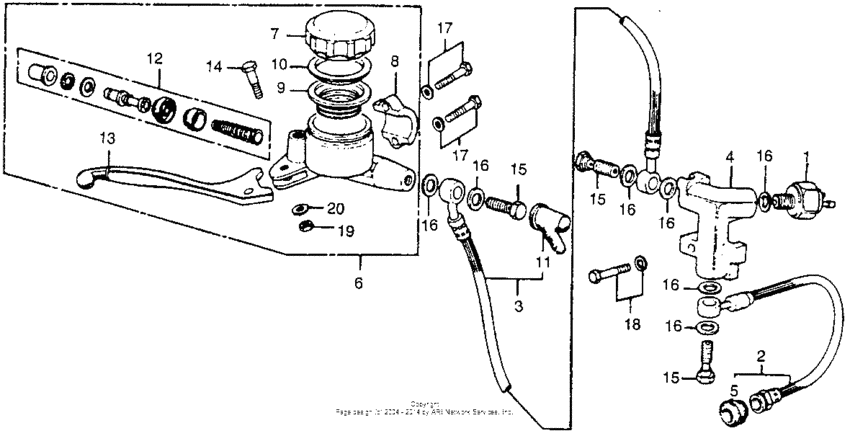

Front brake master cyl. 77 Diagram Honda CB750
- Year
- 1977
- Model code
- CB750K A
- Sales region
- USA
- Frame
- CB7502700009 - CB7502729534
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35350-300-016
Switch,stop
|
35350-300-016 |
— | ||
|
2
|
2
45125-405-003
Hose a, fr. brake
|
45125-405-003 |
— | ||
|
3
|
3
45126-300-752
Hose b,fr. brake
|
45126-300-752 |
— | ||
|
4
|
4
45127-323-000
Joint,three way
|
45127-323-000 |
— | ||
|
5
|
5
45146-300-000 Grommet, brake hose |
45146-300-000 |
from US $4.88 |
||
|
6
|
6
45500-405-671 Cylinder,master |
45500-405-671 |
US $191.25 |
||
|
7
|
7
43513-MJ6-006 Cap,oil cup |
43513-MJ6-006 |
US $22.03 |
||
|
8
|
8
45517-MA5-671 Holder |
45517-MA5-671 |
from US $13.74 |
||
|
8
|
8
45517-300-003
Holder master
|
45517-300-003 |
— | ||
| replacement | |||||
|
8
|
8
45517-MA5-671 Holder |
45517-MA5-671 |
from US $13.74 |
||
|
9
|
9
45520-300-000 Diaphragm |
45520-300-000 |
from US $7.99 |
||
|
10
|
10
45521-MJ6-006 Plate, diaphragm |
45521-MJ6-006 |
from US $4.22 |
||
|
11
|
11
45522-300-010 Boot |
45522-300-010 |
from US $6.12 |
||
|
12
|
12
45530-404-315 Cylinder set,mas |
45530-404-315 |
from US $59.56 |
||
|
13
|
13
53175-369-003 Lever,r.steering |
53175-369-003 |
US $41.41 |
||
|
14
|
14
90114-300-000 Bolt,handle lever |
90114-300-000 |
from US $10.20 |
||
|
15
|
15
90145-300-010 Bolt, oil |
90145-300-010 |
from US $8.58 |
||
|
16
|
16
90545-300-000 Washer |
90545-300-000 |
from US $3.18 |
||
|
17
|
17
93401-0602500 Bolt-washer, 6x25 |
93401-0602500 |
from US $0.59 |
||
|
18
|
18
93482-060-280-0
Bolt-washer, 6x28
|
93482-060-280-0 |
— | ||
|
19
|
19
94002-060-000-S NutHEX., 6MM |
94002-060-000-S |
from US $0.44 |
||
|
20
|
20
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
