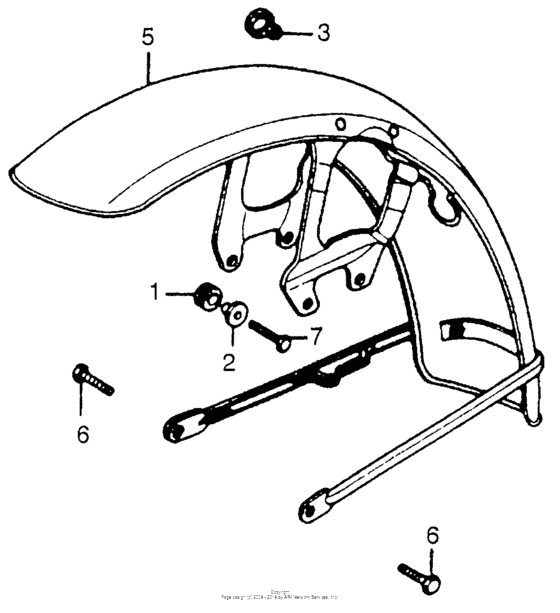

Front fender Diagram Honda CB750
- Year
- 1977
- Model code
- CB750K A
- Sales region
- USA
- Frame
- CB7502700009 - CB7502729534
- Engine Capacity
- 750
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
40513-310-000 Rubber, chain case mounting |
40513-310-000 |
from US $3.48 |
||
|
2
|
2
40514-310-000 Collar, chain case |
40514-310-000 |
from US $6.36 |
||
|
3
|
3
45451-367-690 Grommet, wire |
45451-367-690 |
from US $5.33 |
||
|
5
|
5
61100-405-000
Fender comp.,fr.
|
61100-405-000 |
— | ||
|
6
|
6
92101-06012
Bolt, hex. (6x12)
|
92101-06012 |
— | ||
| replacement | |||||
|
6
|
6
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
6
|
6
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
7
|
7
92101-06020-0A BoltHEX., 6X20 |
92101-06020-0A |
from US $1.58 |
||
