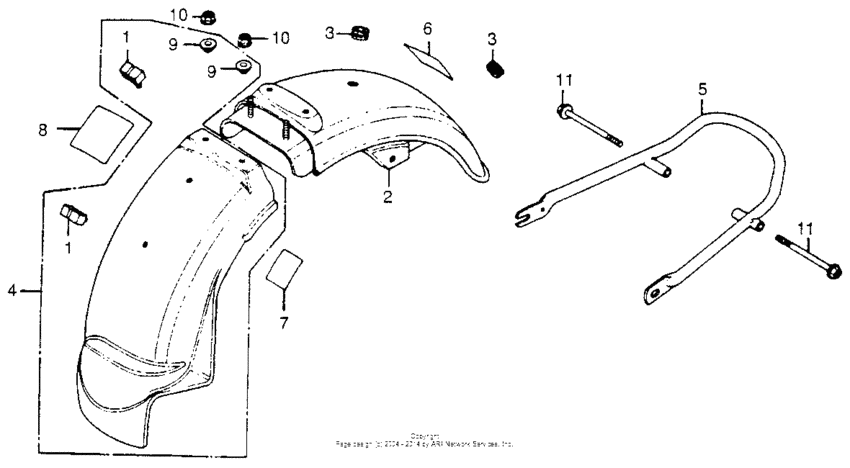

Rear fender Diagram Honda CB750
- Year
- 1977
- Model code
- CB750K A
- Sales region
- USA
- Frame
- CB7502700009 - CB7502729534
- Engine Capacity
- 750
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32985-300-000 Grommet, cable |
32985-300-000 |
from US $3.66 |
||
|
2
|
2
80100-405-000
Fender a,rear
|
80100-405-000 |
— | ||
|
3
|
3
32983-011-000 Grommet, harnUse from Frame SN 2717960 |
32983-011-000 |
from US $2.81 |
||
|
3
|
3
80102-323-000 Grommet, wire cordUse up to Frame SN 2717959 |
80102-323-000 |
from US $2.22 |
||
|
4
|
4
80105-341-010
Fender b, rear
|
80105-341-010 |
— | ||
|
5
|
5
84101-405-000
Bumper,rr.
|
84101-405-000 |
— | ||
|
6
|
6
87505-405-670
Mark,tire caution
|
87505-405-670 |
— | ||
|
7
|
7
87506-405-000
Mark,bat.caution
|
87506-405-000 |
— | ||
|
8
|
8
87512-371-670
Mark,caution
|
87512-371-670 |
— | ||
|
9
|
9
90512-300-000 Washer (6x20) |
90512-300-000 |
from US $2.22 |
||
|
10
|
10
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
11
|
11
95701-0808000 Bolt, flange, 8x80 |
95701-0808000 |
from US $0.89 |
