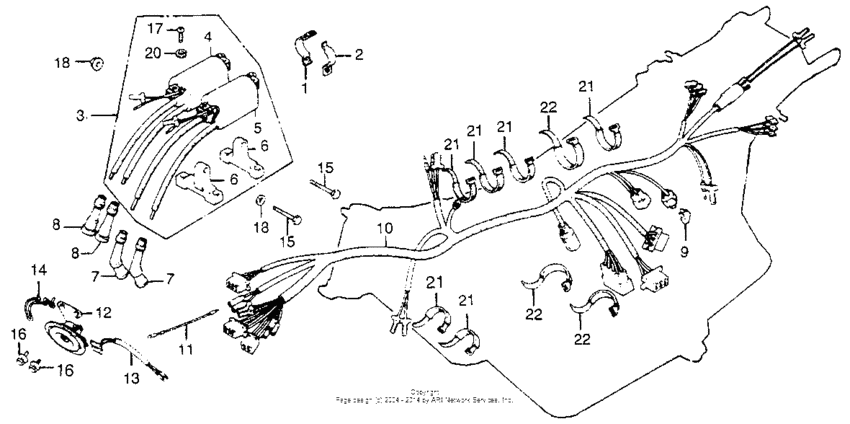

Wire harness + ignition coil Diagram Honda CB750

Year
1977
Model code
CB750K A
Sales region
USA
Frame
CB7502700009 - CB7502729534
Engine Capacity
750

Difficulties in parts search?

Parts list
Wire harness + ignition coil

Difficulties in parts search?

Wire harness + ignition coil
Description OEM Part # Price
1
1
30151-300-000
Band a

30151-300-000

2
2
30152-300-000
Band b

30152-300-000

3
3

30500-300-013

Coil,ignition

30500-300-013

from US $317.02

4
4
30501-300-003
Coil,r.ignition

30501-300-003

5
5
30502-300-003
Coil,l.iginition

30502-300-003

6
6
30511-300-000
Bracket ignition

30511-300-000

7
7

30700-GAR-000

Cap assy.

Use up to Frame SN 2725603

30700-GAR-000

from US $16.86

8
8

30700-MW3-000

Cap assy.

Use up to Frame SN 2725603

30700-MW3-000

from US $13.55

9
9
31700-124-003
Rectifier assy., silicon (stanley)

31700-124-003

replacement
9
9

31700-124-008

Rectifier assy., silicon (shindengen)

31700-124-008

from US $25.02

9
9

31700-124-008

Rectifier assy., silicon (shindengen)

31700-124-008

from US $25.02

10
10
32100-405-670
Harness,wire

32100-405-670

11
11
32101-385-000
Sub cord, a

32101-385-000

12
12
38100-392-621
Horn assy

38100-392-621

13
13
38105-369-000
Sub cord,horn

38105-369-000

14
14

50462-323-010

Clamp,cable

50462-323-010

US $12.14

15
15

92101-06025-0A

Bolt, hex., 6x25

92101-06025-0A

from US $0.52

16
16

93401-060-160-0

Bolt-washer

6X16

93401-060-160-0

from US $0.52

17
17

93500-050-200-A

Screw

PAN, 5X20

93500-050-200-A

from US $0.37

18
18

94050-06000

Nut

FLANGE, 6MM

94050-06000

from US $0.52

19
19

94101-06800

Washer

PLAIN, 6MM

94101-06800

from US $0.37

20
20

94111-05000

Washer

SPRING, 5MM

94111-05000

from US $0.37

21
21

32161-404-000

Band b1, wire

32161-404-000

from US $1.73

22
22

9501461200

Band a2, wire

9501461200

from US $1.24
