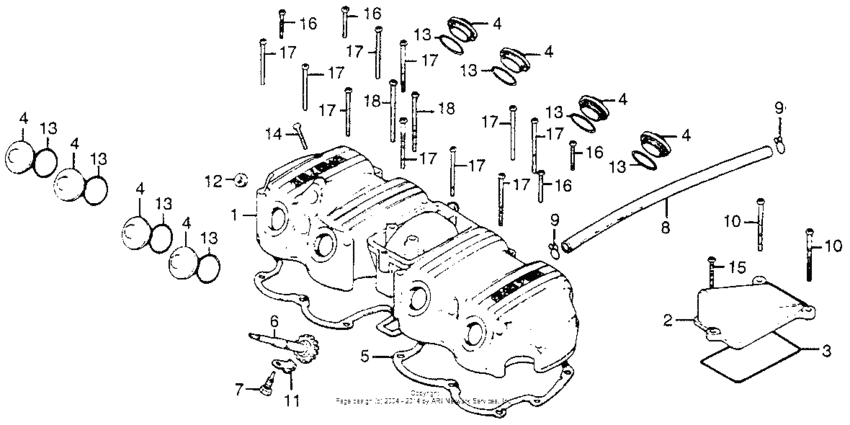

Cylinder head cover Diagram Honda CB750
- Year
- 1978
- Model code
- CB750K A
- Sales region
- USA
- Frame
- CB7502800001 -
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12310-405-600
Cover, cylinder head
|
12310-405-600 |
— | ||
|
2
|
2
12321-405-600
Cover, head breather
|
12321-405-600 |
— | ||
|
3
|
3
12329-300-020 Gasket, bthr cvr |
12329-300-020 |
US $10.36 |
||
|
4
|
4
12361-300-000 Cap, valve adj. |
12361-300-000 |
from US $13.04 |
||
|
5
|
5
12391-300-306 Gasket, cyl hd cvr |
12391-300-306 |
from US $29.68 |
||
|
6
|
6
12431-300-010
Gear, tachometer
|
12431-300-010 |
— | ||
|
7
|
7
12435-300-003
Bolt
|
12435-300-003 |
— | ||
|
8
|
8
15713-405-600
Tube,breather
|
15713-405-600 |
— | ||
|
9
|
9
90646-657-000 ClipAIR HOSE, 16MM |
90646-657-000 |
from US $2.89 |
||
|
10
|
10
90018-300-000 Screw,pan,6x75 |
90018-300-000 |
US $5.28 |
||
|
11
|
11
90439-300-000
Washer,lock
|
90439-300-000 |
— | ||
|
12
|
12
91256-096-651 Oil seal,4.8x14.5 |
91256-096-651 |
from US $3.27 |
||
|
13
|
13
91302-001-020 O-ring, 30.8mm |
91302-001-020 |
from US $3.63 |
||
|
14
|
14
93500-050-250-A ScrewPAN, 5X25 |
93500-050-250-A |
from US $0.44 |
||
|
15
|
15
93500-060-200-A ScrewPAN, 6X20 |
93500-060-200-A |
from US $0.44 |
||
|
16
|
16
93500-060400A Screw, pan (6x40) |
93500-060400A |
from US $0.52 |
||
|
17
|
17
93500-060-600-A Screw,pan,6x60 |
93500-060-600-A |
from US $0.59 |
||
|
18
|
18
93500-060-800-A Screw pan 6x80 |
93500-060-800-A |
from US $0.74 |
