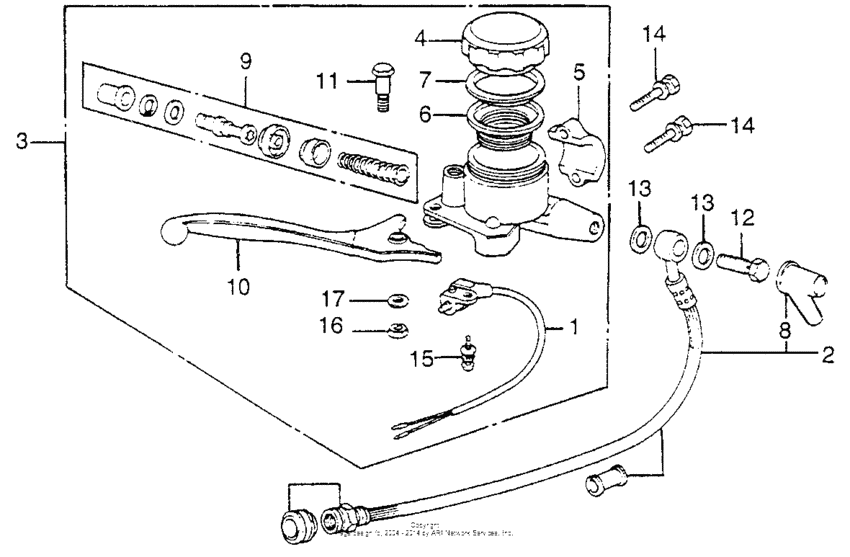

Front brake master cyl. 78 Diagram Honda CB750
- Year
- 1978
- Model code
- CB750K A
- Sales region
- USA
- Frame
- CB7502800001 -
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35340-393-771
Switch,fr.stop
|
35340-393-771 |
— | ||
|
2
|
2
45125-393-701
Hose,fr.brake
|
45125-393-701 |
— | ||
|
3
|
3
45500-405-701
Master cylinder
|
45500-405-701 |
— | ||
|
4
|
4
43513-MJ6-006 Cap,oil cup |
43513-MJ6-006 |
US $22.03 |
||
|
5
|
5
45517-MA5-671 Holder |
45517-MA5-671 |
from US $13.74 |
||
|
5
|
5
45517-300-003
Holder master
|
45517-300-003 |
— | ||
| replacement | |||||
|
5
|
5
45517-MA5-671 Holder |
45517-MA5-671 |
from US $13.74 |
||
|
6
|
6
45520-300-000 Diaphragm |
45520-300-000 |
from US $7.99 |
||
|
7
|
7
45521-MJ6-006 Plate, diaphragm |
45521-MJ6-006 |
from US $4.22 |
||
|
8
|
8
45522-300-010 Boot |
45522-300-010 |
from US $6.12 |
||
|
9
|
9
45530-404-315 Cylinder set,mas |
45530-404-315 |
from US $59.56 |
||
|
10
|
10
53175-431-670
Lever, handle
|
53175-431-670 |
— | ||
|
11
|
11
90114-393-770
Bolt,pivot
|
90114-393-770 |
— | ||
|
12
|
12
90145-300-010 Bolt, oil |
90145-300-010 |
from US $8.58 |
||
|
13
|
13
90545-300-000 Washer |
90545-300-000 |
from US $1.21 |
||
|
14
|
14
93401-0602500 Bolt-washer, 6x25 |
93401-0602500 |
from US $0.59 |
||
|
15
|
15
93893-040-120-0 Screw-washer4X12 |
93893-040-120-0 |
from US $0.52 |
||
|
16
|
16
94002-060-000-S NutHEX., 6MM |
94002-060-000-S |
from US $0.44 |
||
|
17
|
17
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
