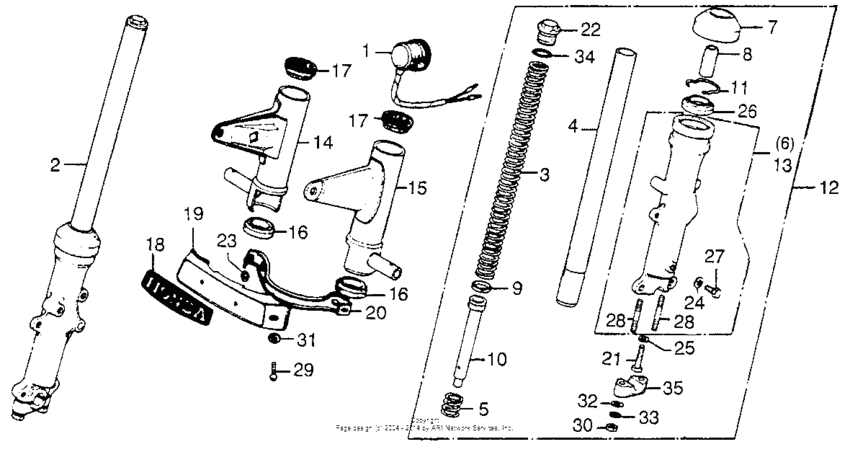

Front fork Diagram Honda CB750
- Year
- 1978
- Model code
- CB750K A
- Sales region
- USA
- Frame
- CB7502800001 -
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38400-341-674
Buzzer,winker
|
38400-341-674 |
— | ||
|
2
|
2
51400-393-003
Fork,right front
|
51400-393-003 |
— | ||
|
3
|
3
51401-393-000
Spring,fr.cushion
|
51401-393-000 |
— | ||
|
4
|
4
51410-393-003
Pipe,front fork
|
51410-393-003 |
— | ||
|
5
|
5
51412-340-000 Spring, fr |
51412-340-000 |
from US $4.14 |
||
|
6
|
6
51421-393-003
Case,right bottom
|
51421-393-003 |
— | ||
|
7
|
7
51425-375-003 Dust seal,fr fork |
51425-375-003 |
US $27.06 |
||
|
8
|
8
51432-371-003
Piece, oil lock
|
51432-371-003 |
— | ||
|
9
|
9
51437-329-010 Ring,piston |
51437-329-010 |
from US $8.44 |
||
|
10
|
10
51440-393-003
Pipe,bottom
|
51440-393-003 |
— | ||
|
11
|
11
51447-KL4-951 Ring |
51447-KL4-951 |
from US $2.66 |
||
|
12
|
12
51500-393-003
Fork,left front
|
51500-393-003 |
— | ||
|
13
|
13
51521-393-003
Case,l.bottom
|
51521-393-003 |
— | ||
|
14
|
14
51602-405-000
Cover,r.fr.fork
|
51602-405-000 |
— | ||
|
15
|
15
51606-405-000
Cover,l.fr.fork
|
51606-405-000 |
— | ||
|
16
|
16
51622-323-000 Cushion b,cover |
51622-323-000 |
US $9.28 |
||
|
17
|
17
61315-340-000
Cushion,head lt.
|
61315-340-000 |
— | ||
|
18
|
18
87126-405-000
Emblem,fr.
|
87126-405-000 |
— | ||
|
19
|
19
87127-405-000 Garnish,fr.emblem |
87127-405-000 |
US $47.09 |
||
|
20
|
20
87128-405-000
Stay,fr.emblem
|
87128-405-000 |
— | ||
|
21
|
21
90116-383-721 Bolt, socket (8mm) |
90116-383-721 |
from US $3.85 |
||
|
22
|
22
90123-300-000 Bolt,front fork |
90123-300-000 |
from US $39.30 |
||
|
23
|
23
90313-567-000 NutSPEED, 3MM |
90313-567-000 |
from US $1.55 |
||
|
24
|
24
90543-273-000 Gasket, fr. |
90543-273-000 |
from US $2.15 |
||
|
25
|
25
90544-283-000 Washer (8mm) |
90544-283-000 |
from US $2.52 |
||
|
26
|
26
91255-KBH-003 Seal,oil,35x48x11 |
91255-KBH-003 |
from US $11.99 |
||
|
27
|
27
92101-06010-0A Bolt, hex., 6x10 |
92101-06010-0A |
from US $0.44 |
||
|
28
|
28
92900-08028-3B Bolt, stud (8x50) |
92900-08028-3B |
from US $0.74 |
||
|
29
|
29
93500-050-120-B ScrewPAN, 5X12 |
93500-050-120-B |
from US $0.52 |
||
|
30
|
30
94030-08000 NutHEX., 8MM |
94030-08000 |
from US $0.44 |
||
|
31
|
31
94101-05800 WasherPLAIN, 5MM |
94101-05800 |
from US $0.37 |
||
|
32
|
32
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
33
|
33
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
34
|
34
9460850000 O-ring, 23x2.8 |
9460850000 |
from US $0.89 |
||
|
35
|
35
95014-41000 Holder,axle |
95014-41000 |
from US $7.70 |
