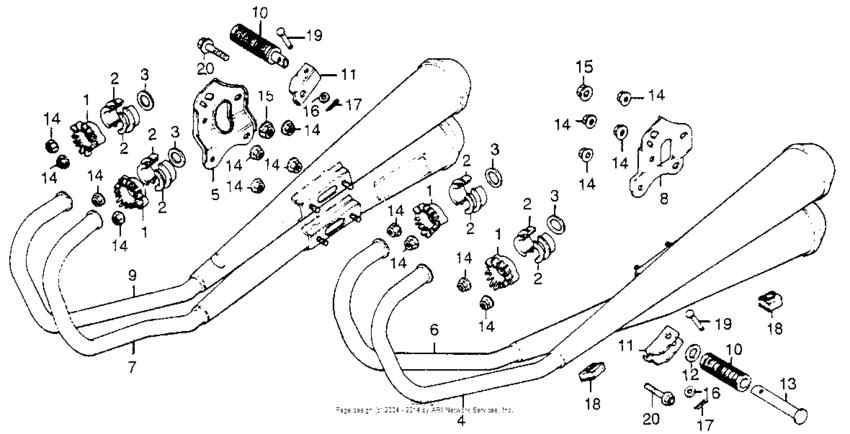

Muffler Diagram Honda CB750
- Year
- 1978
- Model code
- CB750K A
- Sales region
- USA
- Frame
- CB7502800001 -
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18231-392-000
Joint,ex.pipe
|
18231-392-000 |
— | ||
|
2
|
2
18233-392-000 Collar,ex.pipe |
18233-392-000 |
US $17.14 |
||
|
3
|
3
18291-MM5-860 Gasket, ex. pipe |
18291-MM5-860 |
from US $3.13 |
||
|
4
|
4
18300-405-777
Muffler comp.,ex.
Use up to Frame SN 2818257 |
18300-405-777 |
— | ||
|
5
|
5
18340-405-770
Stay, r. muffler
|
18340-405-770 |
— | ||
|
6
|
6
18350-405-777
Muffler comp.,ex.
Use up to Frame SN 2818257 |
18350-405-777 |
— | ||
|
7
|
7
18400-405-777
Muffler comp.,ex.
Use up to Frame SN 2818257 |
18400-405-777 |
— | ||
|
8
|
8
18430-405-000
Stay,l.muffler
|
18430-405-000 |
— | ||
|
9
|
9
18450-405-777
Muffler comp.,ex.
Use up to Frame SN 2818257 |
18450-405-777 |
— | ||
|
10
|
10
50710-405-000 Rub.,pillion step |
50710-405-000 |
US $13.17 |
||
|
11
|
11
50711-405-000
Bracket,pillion
|
50711-405-000 |
— | ||
|
12
|
12
50712-405-000 Wash.pillion step |
50712-405-000 |
from US $0.88 |
||
|
13
|
13
50715-405-000 Bar,pillion step |
50715-405-000 |
from US $9.77 |
||
|
14
|
14
94050-08000 NutFLANGE, 8MM |
94050-08000 |
from US $0.52 |
||
|
15
|
15
94050-10000 NutFLANGE, 10MM |
94050-10000 |
from US $0.74 |
||
|
16
|
16
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
17
|
17
9420116250 Pin, cotter (1.6x25) |
9420116250 |
from US $0.44 |
||
|
18
|
18
9501161000 Rubber a, stand stopper |
9501161000 |
from US $0.74 |
||
|
19
|
19
9501581000 Pin a, pillion step |
9501581000 |
from US $1.48 |
||
|
20
|
20
95701-100-280-0 Bolt, flange, 10x28 |
95701-100-280-0 |
from US $0.81 |
