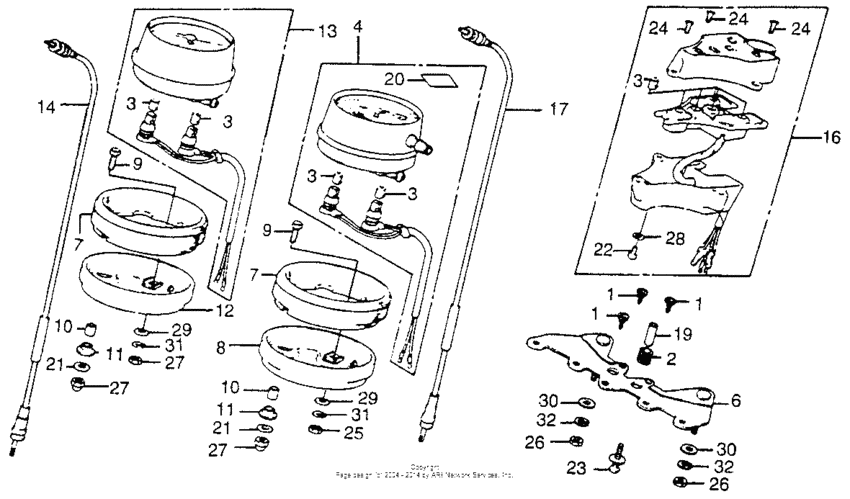

Speedometer + tachometer + pilot Diagram Honda CB750
- Year
- 1978
- Model code
- CB750K A
- Sales region
- USA
- Frame
- CB7502800001 -
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32701-392-700
Stopper,bracket
|
32701-392-700 |
— | ||
|
2
|
2
32702-392-700
Grommet,bracket
|
32702-392-700 |
— | ||
|
3
|
3
34902-259-000 BulbDASH (12V 3.4W) (STANLEY) |
34902-259-000 |
from US $2.29 |
||
| replacement | |||||
|
3
|
3
34902-259-003 Bulb (12v 3.4w) |
34902-259-003 |
from US $2.11 |
||
|
4
|
4
37200-405-671
Speedometer assy
|
37200-405-671 |
— | ||
|
6
|
6
37211-405-000
Bracket,meter
|
37211-405-000 |
— | ||
|
7
|
7
37235-323-700 Rubber, speedometer |
37235-323-700 |
from US $19 |
||
|
8
|
8
37236-426-000 Plate,spdmt.under |
37236-426-000 |
US $56.58 |
||
|
9
|
9
37238-323-700 Bolt (6mm) |
37238-323-700 |
US $3.03 |
||
|
10
|
10
37243-323-700 Collar |
37243-323-700 |
US $5.33 |
||
|
11
|
11
37244-307-670 Rubber |
37244-307-670 |
from US $3.55 |
||
|
12
|
12
37246-426-000 Plate,tach.under |
37246-426-000 |
US $32.91 |
||
|
13
|
13
37250-405-771
Tachometer assy.
|
37250-405-771 |
— | ||
|
14
|
14
37260-149-000
Cable,tachometer
|
37260-149-000 |
— | ||
|
16
|
16
37600-377-018
Pilot assy,comb
|
37600-377-018 |
— | ||
|
17
|
17
44830-426-830 Cable assy,spdmt.Use up to Frame SN 2809578 |
44830-426-830 |
from US $22.03 |
||
|
19
|
19
84706-375-000
Collar,number set
|
84706-375-000 |
— | ||
|
20
|
20
87523-410-790
Label,brk.caution
Use from Frame SN 2850001 |
87523-410-790 |
— | ||
|
21
|
21
90545-323-700 Washer, 6.5x18 |
90545-323-700 |
from US $2.74 |
||
|
22
|
22
93500-050-060-G ScrewPAN, 5X6 |
93500-050-060-G |
from US $0.37 |
||
|
23
|
23
93894-050-280-0 Screw-washer,5x28 |
93894-050-280-0 |
US $0.52 |
||
|
24
|
24
93902-24280 Screw,tapping4x10 |
93902-24280 |
US $0.37 |
||
|
25
|
25
94001-060-700-S NutHEX., 6MM |
94001-060-700-S |
from US $0.44 |
||
|
26
|
26
94001-080-700-S NutHEX., 8MM |
94001-080-700-S |
from US $0.44 |
||
|
27
|
27
9402106020 Nut, cap (6mm) |
9402106020 |
from US $0.74 |
||
|
28
|
28
94101-05700 WasherPLAIN, 5MM |
94101-05700 |
from US $0.37 |
||
|
29
|
29
94101-06700 WasherPLAIN, 6MM |
94101-06700 |
from US $0.37 |
||
|
30
|
30
94101-08700 WasherPLAIN, 8MM |
94101-08700 |
from US $0.37 |
||
|
31
|
31
94111-06700 WasherSPRING, 6MM |
94111-06700 |
from US $0.37 |
||
|
32
|
32
94111-08700 WasherSPRING, 8MM |
94111-08700 |
US $0.37 |
||
