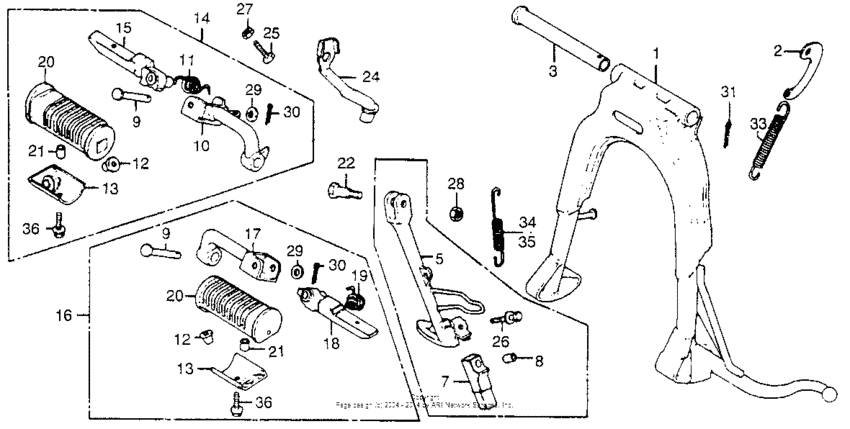

Step + stand Diagram Honda CB750
- Year
- 1978
- Model code
- CB750K A
- Sales region
- USA
- Frame
- CB7502800001 -
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50500-405-000
Stand,main
|
50500-405-000 |
— | ||
|
2
|
2
50523-300-010 Plate main stand |
50523-300-010 |
US $8.87 |
||
|
3
|
3
50526-300-000 Pipe |
50526-300-000 |
US $16.46 |
||
|
5
|
5
50540-405-010
Bar,side stand
|
50540-405-010 |
— | ||
|
7
|
7
50548-356-700 Rubber, stand |
50548-356-700 |
from US $7.15 |
||
|
8
|
8
50549-356-700 Collar |
50549-356-700 |
from US $2.96 |
||
|
9
|
9
50603-033-010 Pin, step bar joint |
50603-033-010 |
from US $3.70 |
||
|
10
|
10
50615-405-000
Bar comp.,r.step
|
50615-405-000 |
— | ||
|
11
|
11
50617-300-670
Spring, r
|
50617-300-670 |
— | ||
|
12
|
12
50618-431-670
Slider,step
Use up to Frame SN 2822562 |
50618-431-670 |
— | ||
|
13
|
13
50619-MB9-000
Stopper,step rub.
|
50619-MB9-000 |
— | ||
|
14
|
14
50630-405-000
Step assy.,r.
|
50630-405-000 |
— | ||
|
15
|
15
50632-405-000 Arm,r.step |
50632-405-000 |
US $50.30 |
||
|
16
|
16
50640-405-000
Step assy.,l.
|
50640-405-000 |
— | ||
|
17
|
17
50641-300-670-B
Bar l step
|
50641-300-670-B |
— | ||
|
18
|
18
50642-405-000
Arm,l.step
|
50642-405-000 |
— | ||
|
19
|
19
50644-300-670
Spring, l
|
50644-300-670 |
— | ||
|
20
|
20
50661-405-000
Rubber,step
|
50661-405-000 |
— | ||
|
21
|
21
84706-286-000 Collar no bracket |
84706-286-000 |
from US $2.74 |
||
|
22
|
22
90108-283-000 Screw,pivot |
90108-283-000 |
from US $6.96 |
||
|
25
|
25
92025-06025-0A Bolt,hex.,6x25 |
92025-06025-0A |
from US $0.52 |
||
|
26
|
26
93401-0602800 Bolt-washer (6x28) |
93401-0602800 |
from US $0.59 |
||
|
27
|
27
94002-060-000-S NutHEX., 6MM |
94002-060-000-S |
from US $0.44 |
||
|
28
|
28
9403010200 Nut, hex., 10mm |
9403010200 |
from US $0.52 |
||
|
29
|
29
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
30
|
30
9420116250 Pin, cotter (1.6x25) |
9420116250 |
from US $0.44 |
||
|
31
|
31
94201-25300 Pin, split, 2.5x30 |
94201-25300 |
from US $0.44 |
||
|
33
|
33
9501471702 Spring g, main stand |
9501471702 |
from US $3.18 |
||
|
35
|
35
9501472402 Spring d, side stand |
9501472402 |
from US $1.63 |
||
|
36
|
36
95701-0601800 Bolt, flange, 6x18 |
95701-0601800 |
from US $0.52 |
