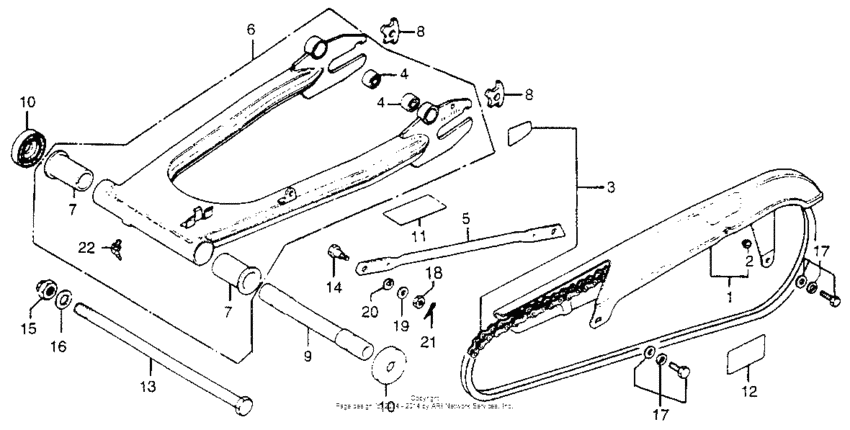

Swingarm + chain case Diagram Honda CB750
- Year
- 1978
- Model code
- CB750K A
- Sales region
- USA
- Frame
- CB7502800001 -
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
40510-405-000
Case,drive chain
|
40510-405-000 |
— | ||
|
2
|
2
40514-333-000 Plug, chain guard |
40514-333-000 |
from US $2.66 |
||
|
3
|
3
40530-405-335
Chain set,drive
|
40530-405-335 |
— | ||
| replacement | |||||
|
3
|
3
40535-425-641
Chain set,drive
|
40535-425-641 |
— | ||
|
3
|
3
40535-425-641
Chain set,drive
|
40535-425-641 |
— | ||
|
4
|
4
40548-268-000 Bush, rubber |
40548-268-000 |
from US $7.10 |
||
|
5
|
5
43431-MK7-000
Arm rr brk,stpr
|
43431-MK7-000 |
— | ||
|
6
|
6
52100-405-000ZA
Fork,rr.*nh-1*
|
52100-405-000ZA |
— | ||
|
7
|
7
52108-457-300 Bush,rr.forkpivot |
52108-457-300 |
from US $33.56 |
||
|
8
|
8
52136-ME1-670
Stopper,chain adj
|
52136-ME1-670 |
— | ||
|
9
|
9
52141-390-010
Collar,rr. fork
|
52141-390-010 |
— | ||
|
10
|
10
52144-362-000 Cap,dust seal |
52144-362-000 |
US $16.59 |
||
|
11
|
11
87504-028-670 Mark, caution |
87504-028-670 |
from US $4.57 |
||
|
12
|
12
87507-405-671
Mark,chain
|
87507-405-671 |
— | ||
|
13
|
13
90121-426-000
Bolt,rr.forkpivot
|
90121-426-000 |
— | ||
|
14
|
14
90133-286-000 Bolt, rr |
90133-286-000 |
from US $4.59 |
||
|
15
|
15
90354-268-000 Nut, self lock |
90354-268-000 |
from US $8.44 |
||
|
16
|
16
90526-268-000 Washer, rr. |
90526-268-000 |
from US $2.74 |
||
|
17
|
17
93483-060-140-0 Bolt-washer,6x14 |
93483-060-140-0 |
US $0.59 |
||
|
18
|
18
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
19
|
19
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
20
|
20
94111-10000 WasherSPRING, 10MM |
94111-10000 |
from US $0.44 |
||
|
21
|
21
94201-29220
Pin
|
94201-29220 |
— | ||
| replacements | |||||
|
21
|
21
94201-20220 Pin 2.0X22SPLIT, 2.0X22 |
94201-20220 |
US $0.44 |
||
|
21
|
21
9420120350 Pin, cotter (2.0x35) |
9420120350 |
from US $0.44 |
||
|
21
|
21
94201-20220 Pin 2.0X22SPLIT, 2.0X22 |
94201-20220 |
US $0.44 |
||
|
21
|
21
9420120350 Pin, cotter (2.0x35) |
9420120350 |
from US $0.44 |
||
|
22
|
22
9620180000 Fitting (b.76s) |
9620180000 |
from US $1.85 |
||
