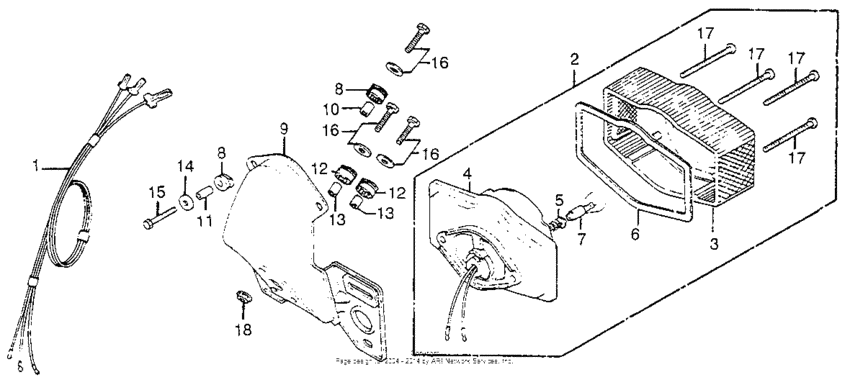

Taillight Diagram Honda CB750
- Year
- 1978
- Model code
- CB750K A
- Sales region
- USA
- Frame
- CB7502800001 -
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32111-393-000
Sub-cord,tail
|
32111-393-000 |
— | ||
|
2
|
2
33701-341-910
Light unit,tail
|
33701-341-910 |
— | ||
|
3
|
3
33702-341-671 Lens,tail light |
33702-341-671 |
from US $56.29 |
||
|
4
|
4
33703-341-900
Base,tail light
|
33703-341-900 |
— | ||
|
5
|
5
33708-098-000 Wire, taillight |
33708-098-000 |
US $7.84 |
||
|
6
|
6
33709-341-671
Packing,tail lt.
|
33709-341-671 |
— | ||
|
7
|
7
34906-MG9-771 Bulb (12v27/7w) |
34906-MG9-771 |
from US $5.10 |
||
|
8
|
8
80101-283-000 Rubber, rr. fender cushion |
80101-283-000 |
from US $4.29 |
||
|
9
|
9
84700-425-870
Brkt,number plate
|
84700-425-870 |
— | ||
|
10
|
10
84706-286-000 Collar no bracket |
84706-286-000 |
from US $2.74 |
||
|
11
|
11
84706-378-000
Collar,tail light
|
84706-378-000 |
— | ||
|
12
|
12
84905-333-000 Rubber, fender |
84905-333-000 |
from US $4.44 |
||
|
13
|
13
84906-118-000 Collar, number bracket setting |
84906-118-000 |
from US $2.37 |
||
|
14
|
14
90581-310-000 Washer,18m/m |
90581-310-000 |
from US $2.74 |
||
|
15
|
15
92101-05025-0A Bolt, hex. (5x25) |
92101-05025-0A |
from US $0.47 |
||
|
16
|
16
93494-060-220-0 Bolt-washer,6x22 |
93494-060-220-0 |
from US $0.59 |
||
| replacement | |||||
|
16
|
16
93404-0602200 Bolt-washer (6x22) |
93404-0602200 |
from US $0.59 |
||
|
17
|
17
93500-040-554-J Screw,pan,4x55 |
93500-040-554-J |
from US $0.44 |
||
|
18
|
18
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
