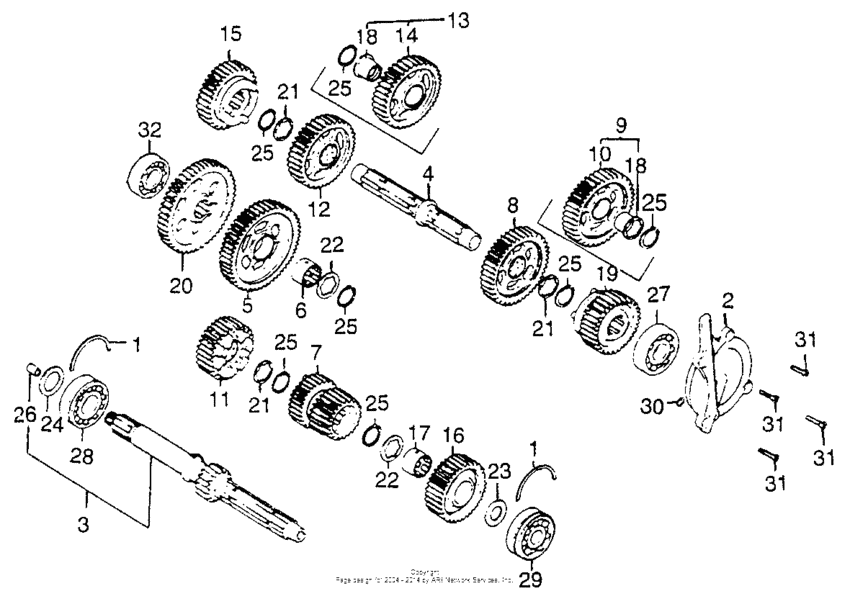

Transmission Diagram Honda CB750
- Year
- 1978
- Model code
- CB750K A
- Sales region
- USA
- Frame
- CB7502800001 -
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13495-300-000
Ring a set
|
13495-300-000 |
— | ||
|
2
|
2
23150-300-010
Holder,shaft
|
23150-300-010 |
— | ||
|
3
|
3
23210-392-000
Mainshaft,trns.
|
23210-392-000 |
— | ||
|
4
|
4
23220-371-000
Countershaft
|
23220-371-000 |
— | ||
|
5
|
5
23421-300-050
Gear,low
|
23421-300-050 |
— | ||
|
6
|
6
23425-392-000
Bush,spline 29mm
|
23425-392-000 |
— | ||
|
7
|
7
23431-392-000
Gear,m.2.3
|
23431-392-000 |
— | ||
|
10
|
10
23441-410-000 Gear,ct/shaft 2nd |
23441-410-000 |
US $167.56 |
||
|
11
|
11
23450-392-000
Gear,m/shaft 4th
|
23450-392-000 |
— | ||
|
14
|
14
23461-410-000 Gear,ct/shaft 3rd |
23461-410-000 |
US $99.72 |
||
|
15
|
15
23471-300-010
Gear,fourth
|
23471-300-010 |
— | ||
|
16
|
16
23481-300-020
Gear,main top
|
23481-300-020 |
— | ||
|
17
|
17
23485-392-000
Bush,spline 28mm
|
23485-392-000 |
— | ||
|
18
|
18
23485-410-003
Bush (28mm)
|
23485-410-003 |
— | ||
|
19
|
19
23491-392-000
Gear,countershaft
|
23491-392-000 |
— | ||
|
20
|
20
23501-392-000
Gear (43t)
|
23501-392-000 |
— | ||
|
21
|
21
90451-MB2-000
Wash,thrust,25mm
|
90451-MB2-000 |
— | ||
|
22
|
22
90452-371-000 Washer (25x34) |
90452-371-000 |
US $6.95 |
||
|
23
|
23
90458-292-000 Washer, thrust, 20mm |
90458-292-000 |
from US $3.55 |
||
|
24
|
24
90458-506-810
Washer a (25mm)
|
90458-506-810 |
— | ||
|
25
|
25
90601-300-000 Circlip (25mm) |
90601-300-000 |
from US $4.29 |
||
|
26
|
26
90809-300-300
Plug,special10x10
|
90809-300-300 |
— | ||
|
27
|
27
96100-6304000 Bearing, radial ball, 6304 |
96100-6304000 |
from US $8.44 |
||
|
28
|
28
91003-612-004 B/brg rad n/com |
91003-612-004 |
US $14 |
||
|
29
|
29
91003-235-000 B/brg rad n/com |
91003-235-000 |
US $16.05 |
||
|
30
|
30
91301-426-010 O-ring,4.9x2.5 |
91301-426-010 |
from US $3.77 |
||
|
31
|
31
93600-060-200-A ScrewFLAT, 6X20 |
93600-060-200-A |
from US $0.44 |
||
|
32
|
32
96100-6204000 Bearing, radial ball, 6204 |
96100-6204000 |
from US $6.66 |
