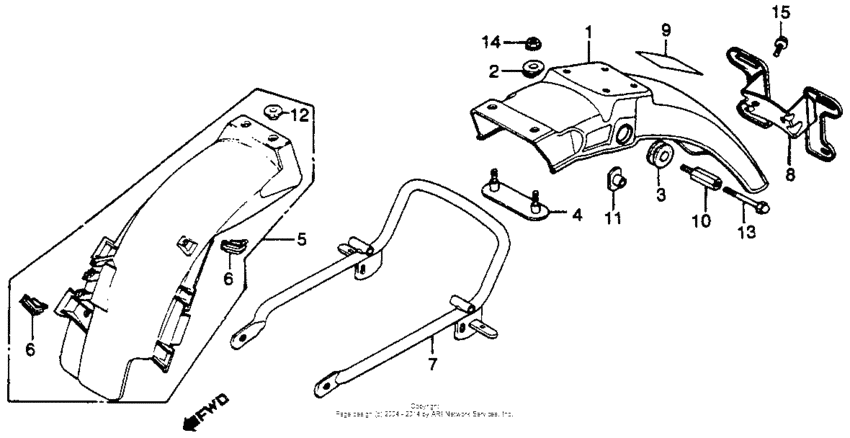

Cb750k rear fender 79 Diagram Honda CB750
- Year
- 1979
- Model code
- CB750K A
- Sales region
- USA
- Frame
- RC012000001 - RC012025239
- Engine Capacity
- 750
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
80100-425-000
Fender a,rr.
|
80100-425-000 |
— | ||
|
2
|
2
80102-425-000
Rubbera,rr.fender
|
80102-425-000 |
— | ||
|
3
|
3
80103-425-000
Rubberb,rr.fender
|
80103-425-000 |
— | ||
|
4
|
4
80104-425-000
Plate,rr.fend.und
|
80104-425-000 |
— | ||
|
5
|
5
80105-425-000 Fender b,rr. |
80105-425-000 |
US $150.67 |
||
|
6
|
6
80110-147-000 Clamp, cable |
80110-147-000 |
from US $3.58 |
||
|
7
|
7
84100-425-000
Bumper,rr.
|
84100-425-000 |
— | ||
|
8
|
8
84701-425-670
Brkt,number plate
|
84701-425-670 |
— | ||
|
9
|
9
87512-422-300
Mark,access cauti
|
87512-422-300 |
— | ||
|
10
|
10
90160-425-000
Bolt, rr
|
90160-425-000 |
— | ||
|
11
|
11
90362-425-000
Nut, special (8mm)
|
90362-425-000 |
— | ||
|
12
|
12
90512-300-000 Washer (6x20) |
90512-300-000 |
from US $2.22 |
||
|
13
|
13
92500-08050-0B
Bolt,hex,cap,8x50
|
92500-08050-0B |
— | ||
|
14
|
14
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
15
|
15
95701-060-100-0 BoltFLANGE, 6X10 |
95701-060-100-0 |
from US $0.52 |
