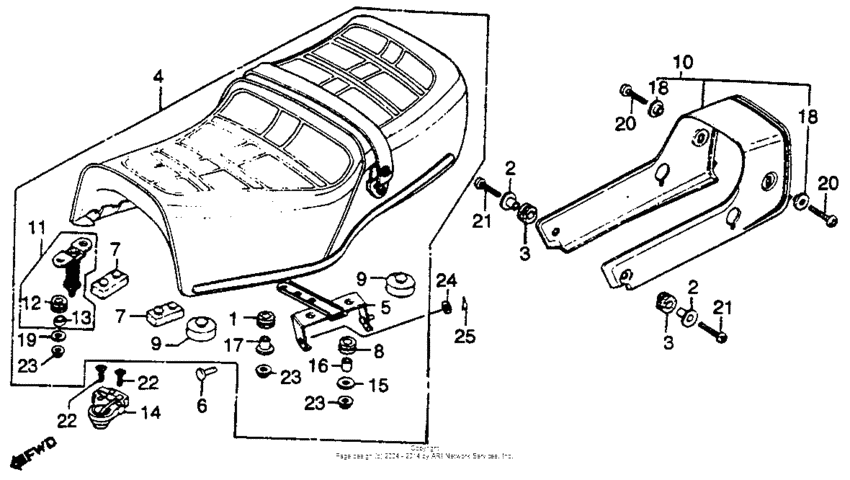

Cb750k seat 79 Diagram Honda CB750
- Year
- 1979
- Model code
- CB750K A
- Sales region
- USA
- Frame
- RC012000001 - RC012025239
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17245-107-010 Rubber |
17245-107-010 |
from US $2.23 |
||
|
2
|
2
50324-425-010 Collar (6.3x13) |
50324-425-010 |
from US $4 |
||
|
3
|
3
50329-425-000 Rubber b, battery box |
50329-425-000 |
from US $4.73 |
||
|
4
|
4
77200-425-010
Seat comp.,double
|
77200-425-010 |
— | ||
|
5
|
5
77202-425-010
Hinge,seat
|
77202-425-010 |
— | ||
|
6
|
6
77203-425-000 Pin, seat hinge |
77203-425-000 |
from US $2.89 |
||
|
7
|
7
77204-312-000 Rubber, seat setting |
77204-312-000 |
from US $4.74 |
||
|
8
|
8
77206-375-000
Rubber a,seat set
|
77206-375-000 |
— | ||
|
9
|
9
77206-425-000
Cushion
|
77206-425-000 |
— | ||
|
10
|
10
77215-425-000ZA
Cover *r-104c-u*
|
77215-425-000ZA |
— | ||
|
10
|
10
77215-425-000ZB Cover,*yr-106c-u* |
77215-425-000ZB |
US $216.16 |
||
|
10
|
10
77215-425-000ZD
Cover,seat*nh-1*
|
77215-425-000ZD |
— | ||
|
11
|
11
77220-340-003
Bar assy., seat lock
|
77220-340-003 |
— | ||
|
12
|
12
77228-340-003 Rubber, seat lock bar cushion |
77228-340-003 |
from US $5.48 |
||
|
13
|
13
77229-340-003 Colr, seat lock bar |
77229-340-003 |
from US $3.03 |
||
|
14
|
14
77230-399-007 Lock assy., seat |
77230-399-007 |
US $66.60 |
||
|
15
|
15
77302-124-000 WasherSEAT MOUNTING |
77302-124-000 |
from US $2 |
||
|
16
|
16
84706-310-000
Collar b
|
84706-310-000 |
— | ||
|
17
|
17
90501-425-000 Collar6.2X12 |
90501-425-000 |
from US $3.70 |
||
|
18
|
18
90506-425-000 Washer, rr. cover |
90506-425-000 |
from US $2.89 |
||
|
19
|
19
94103-06800 WasherPLAIN, 6MM |
94103-06800 |
from US $0.37 |
||
|
20
|
20
93500-060120G Screw, pan, 6x12 |
93500-060120G |
from US $0.44 |
||
|
21
|
21
93500-060-200-G ScrewPAN, 6X20 |
93500-060-200-G |
from US $0.44 |
||
|
22
|
22
93600-060-160-G ScrewFLAT, 6X16 |
93600-060-160-G |
from US $0.44 |
||
|
23
|
23
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
24
|
24
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
25
|
25
94251-06000 PinLOCK, 6MM |
94251-06000 |
from US $0.44 |
