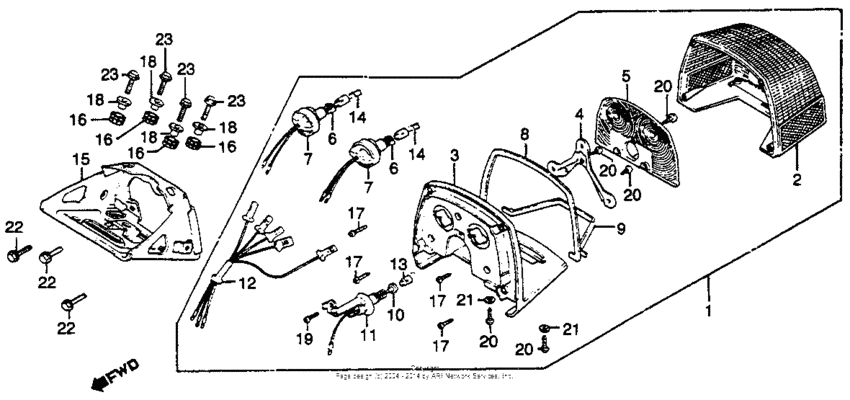

Cb750k taillilght 79 Diagram Honda CB750
- Year
- 1979
- Model code
- CB750K A
- Sales region
- USA
- Frame
- RC012000001 - RC012025239
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33700-415-672
Taillight assy.
|
33700-415-672 |
— | ||
|
2
|
2
33702-415-671
Lens,taillight
|
33702-415-671 |
— | ||
|
3
|
3
33703-415-013
Base,taillight
|
33703-415-013 |
— | ||
|
4
|
4
33704-415-003
Stay,taillight
|
33704-415-003 |
— | ||
|
5
|
5
33705-415-671
Lens, taillight sub
|
33705-415-671 |
— | ||
|
6
|
6
33708-147-003 Cable, taillight |
33708-147-003 |
US $7.62 |
||
|
7
|
7
33710-415-003
Socket,tailstop
|
33710-415-003 |
— | ||
|
8
|
8
33711-415-003
Pack light lens
|
33711-415-003 |
— | ||
|
9
|
9
33712-415-003
Pack b light lens
|
33712-415-003 |
— | ||
|
10
|
10
33713-415-003
Cord,licenselight
|
33713-415-003 |
— | ||
|
11
|
11
33715-415-003
Soket,license lig
|
33715-415-003 |
— | ||
|
12
|
12
33718-415-003
Sub cord taillght
|
33718-415-003 |
— | ||
|
13
|
13
34909-505-003 Bulb12V8W |
34909-505-003 |
US $37.40 |
||
| replacement | |||||
|
13
|
13
34904-634-611 BULB (12V 5W) (ECE)(12V, 5W) ECE |
34904-634-611 |
from US $1.41 |
||
|
14
|
14
34906-MG9-771 Bulb (12v27/7w) |
34906-MG9-771 |
from US $5.10 |
||
|
15
|
15
84700-425-000
Bracket,taillight
|
84700-425-000 |
— | ||
|
16
|
16
84703-425-000 Rubber |
84703-425-000 |
from US $3.77 |
||
|
17
|
17
90111-415-003
Screw,tap.4x18
|
90111-415-003 |
— | ||
|
18
|
18
90501-425-000 Collar6.2X12 |
90501-425-000 |
from US $3.70 |
||
|
19
|
19
93500-040-100-A ScrewPAN, 4X10 |
93500-040-100-A |
from US $0.37 |
||
|
20
|
20
93901-34310 ScrewTAPPING, 4X12 |
93901-34310 |
from US $0.37 |
||
|
21
|
21
94101-04000 WasherPLAIN, 4MM |
94101-04000 |
from US $0.37 |
||
|
22
|
22
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
||
|
23
|
23
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
||
