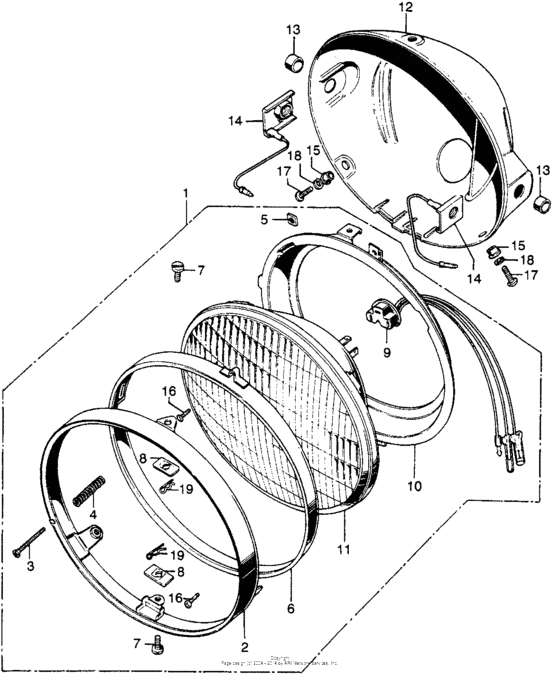

Headlight Diagram Honda CB750
- Model code
- CB750K1 A
- Sales region
- USA
- Frame
- CB7501044650 -
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33100-341-701
Light assy.,head
|
33100-341-701 |
— | ||
|
2
|
2
33101-405-671 Rim, headlight |
33101-405-671 |
from US $81.24 |
||
|
3
|
3
33103-346-670 Screw |
33103-346-670 |
from US $6.82 |
||
| replacement | |||||
|
3
|
3
33103-MW3-610 Screw,beam adjust |
33103-MW3-610 |
from US $9.98 |
||
|
4
|
4
33107-300-003 Spring |
33107-300-003 |
from US $3.40 |
||
|
5
|
5
33117-001-023 Nut, headlight beam adjusting |
33117-001-023 |
from US $2.59 |
||
|
6
|
6
33121-300-672
Ring retaining
|
33121-300-672 |
— | ||
|
7
|
7
33125-292-670
Screw,unit holder
|
33125-292-670 |
— | ||
|
8
|
8
33128-292-670 Nut, unit holder |
33128-292-670 |
from US $3.51 |
||
|
9
|
9
33130-300-003
Socket,head lt.
|
33130-300-003 |
— | ||
|
10
|
10
33153-300-671
Ring mouning
|
33153-300-671 |
— | ||
|
11
|
11
33321-568-671AH
Unit, sealed beam
|
33321-568-671AH |
— | ||
|
12
|
12
61301-300-020CQ
Case,head light
|
61301-300-020CQ |
— | ||
|
12
|
12
61301-300-020AZ
Case,head light
|
61301-300-020AZ |
— | ||
|
12
|
12
61301-300-020CM
Case,head light
|
61301-300-020CM |
— | ||
|
12
|
12
61301-300-020EE
Case,head light
|
61301-300-020EE |
— | ||
|
12
|
12
61301-300-020EF
Case headlight
|
61301-300-020EF |
— | ||
|
12
|
12
61301-300-020EG
Case,head light
|
61301-300-020EG |
— | ||
|
13
|
13
61302-300-000 Collar,light case |
61302-300-000 |
US $6.66 |
||
|
14
|
14
61303-292-000
Washer,light case
|
61303-292-000 |
— | ||
|
15
|
15
61304-292-000 Collar |
61304-292-000 |
from US $3.40 |
||
|
16
|
16
93500-030-100-B Screw cross 3x10 |
93500-030-100-B |
US $0.52 |
||
|
17
|
17
93500-050-160-B ScrewPAN, 5X16 |
93500-050-160-B |
from US $0.52 |
||
|
18
|
18
94111-05000 WasherSPRING, 5MM |
94111-05000 |
from US $0.37 |
||
|
19
|
19
9425105000 Pin, lock, 5mm |
9425105000 |
from US $0.44 |
||
