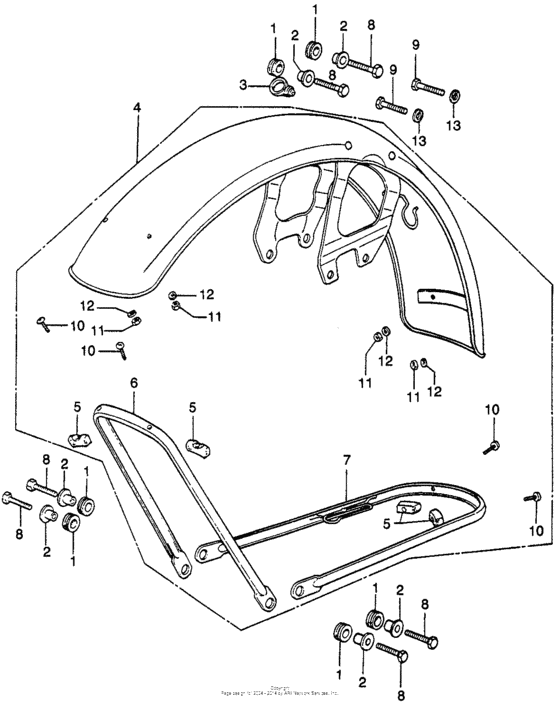

Front fender Diagram Honda CB750
- Model code
- CB750K2 A
- Sales region
- USA
- Frame
- CB7502000001 -
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45451-367-690 Grommet, wireUse up to Frame SN 2093730 |
45451-367-690 |
from US $5.33 |
||
|
1
|
1
40513-310-000 Rubber, chain case mountingUse from Frame SN 2093731 |
40513-310-000 |
from US $3.48 |
||
|
2
|
2
61100-300-040XW Fender,frontUse up to Frame SN 2093730 |
61100-300-040XW |
US $594.19 |
||
|
2
|
2
40514-310-000 Collar, chain caseUse from Frame SN 2093731 |
40514-310-000 |
from US $6.36 |
||
|
3
|
3
61102-300-000 Piece fenderUse up to Frame SN 2093730 |
61102-300-000 |
from US $6.22 |
||
|
3
|
3
45451-367-690 Grommet, wireUse from Frame SN 2093731 |
45451-367-690 |
from US $5.33 |
||
|
4
|
4
61111-323-000
Stay a,fr.fender
Use up to Frame SN 2093730 |
61111-323-000 |
— | ||
|
4
|
4
61100-341-700XW Fender,frontUse from Frame SN 2093731 |
61100-341-700XW |
US $1,240.32 |
||
|
5
|
5
61112-323-000
Stay b,fr.fender
Use up to Frame SN 2093730 |
61112-323-000 |
— | ||
|
5
|
5
61102-300-000 Piece fenderUse from Frame SN 2093731 |
61102-300-000 |
from US $6.22 |
||
|
6
|
6
92101-06016-0A BoltHEX., 6X16 Use up to Frame SN 2093730 |
92101-06016-0A |
from US $0.44 |
||
|
6
|
6
61111-341-700
Stay a,fr-fender
Use from Frame SN 2093731 |
61111-341-700 |
— | ||
|
7
|
7
92101-06025-0A Bolt, hex., 6x25Use up to Frame SN 2093730 |
92101-06025-0A |
from US $0.52 |
||
|
7
|
7
61112-341-700
Stay b,fr-fender
Use from Frame SN 2093731 |
61112-341-700 |
— | ||
|
8
|
8
92101-08025-0A Bolt, hex., 8x25Use up to Frame SN 2093730 |
92101-08025-0A |
from US $0.59 |
||
|
8
|
8
92101-06022-0A BoltHEX., 6X22 Use from Frame SN 2093731 |
92101-06022-0A |
from US $0.55 |
||
|
9
|
9
93700-050-250-B Screw cross 5x25Use up to Frame SN 2093730 |
93700-050-250-B |
from US $0.59 |
||
|
9
|
9
92101-06025-0A Bolt, hex., 6x25Use from Frame SN 2093731 |
92101-06025-0A |
from US $0.52 |
||
|
10
|
10
94001-050-200-S Nut, hex., 5mmUse up to Frame SN 2093730 |
94001-050-200-S |
from US $0.44 |
||
|
10
|
10
93700-050-250-B Screw cross 5x25Use from Frame SN 2093731 |
93700-050-250-B |
from US $0.59 |
||
|
11
|
11
94101-06800 WasherPLAIN, 6MM Use up to Frame SN 2093730 |
94101-06800 |
from US $0.37 |
||
|
11
|
11
94001-050-000-S NutHEX., 5MM Use from Frame SN 2093731 |
94001-050-000-S |
from US $0.37 |
||
|
12
|
12
94101-08000 WasherPLAIN, 8MM Use up to Frame SN 2093730 |
94101-08000 |
from US $0.37 |
||
|
12
|
12
94111-05000 WasherSPRING, 5MM Use from Frame SN 2093731 |
94111-05000 |
from US $0.37 |
||
|
13
|
13
94111-05000 WasherSPRING, 5MM Use up to Frame SN 2093730 |
94111-05000 |
from US $0.37 |
||
|
13
|
13
94111-06000 WasherSPRING, 6MM Use from Frame SN 2093731 |
94111-06000 |
from US $0.37 |
||
|
14
|
14
94111-08000 WasherSPRING, 8MM Use up to Frame SN 2093730 |
94111-08000 |
from US $0.37 |
