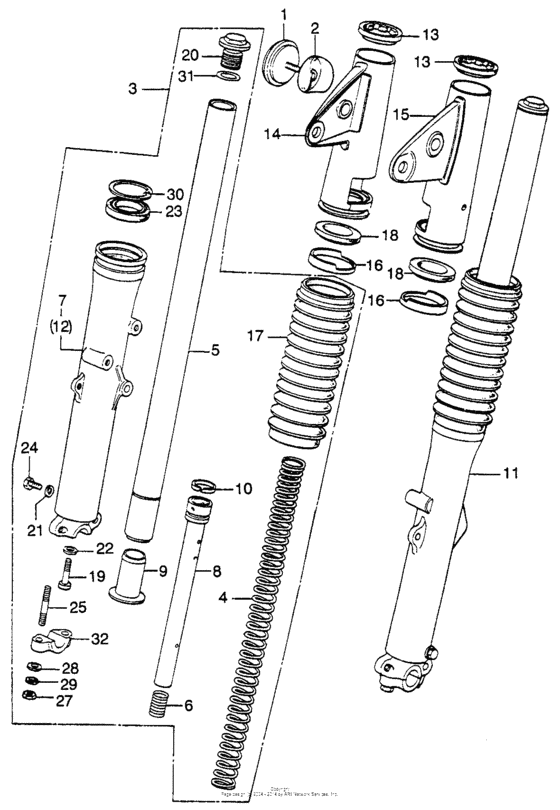

Front fork Diagram Honda CB750
- Model code
- CB750K2 A
- Sales region
- USA
- Frame
- CB7502000001 -
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33741-340-670 Reflector,reflexUse up to Frame SN 2093730 |
33741-340-670 |
US $34.15 |
||
| replacement | |||||
|
1
|
1
33741-102-870 Reflector, fr.Use up to Frame SN 2093730 |
33741-102-870 |
from US $28.70 |
||
|
2
|
2
33743-341-670 Base,fr reflexUse up to Frame SN 2093730 |
33743-341-670 |
from US $5.66 |
||
|
3
|
3
51400-300-030
Fork assy r front
Use up to Frame SN 2093730 |
51400-300-030 |
— | ||
|
3
|
3
51400-341-702
Fork, r. front
Use from Frame SN 2093731 to 2102150 |
51400-341-702 |
— | ||
|
4
|
4
51401-300-000
Spring fr cushion
Use up to Frame SN 2093730 |
51401-300-000 |
— | ||
|
4
|
4
51401-341-700
Spring,fr.cushion
Use from Frame SN 2093731 |
51401-341-700 |
— | ||
|
5
|
5
51410-300-405
Pipe front fork
Use up to Frame SN 2093730 |
51410-300-405 |
— | ||
|
5
|
5
51410-341-702
Pipe,front fork
Use from Frame SN 2093731 |
51410-341-702 |
— | ||
|
6
|
6
51420-319-010
Case,r.bottom
Use up to Frame SN 2093730 |
51420-319-010 |
— | ||
|
6
|
6
51412-340-000 Spring, frUse from Frame SN 2093731 |
51412-340-000 |
from US $4.14 |
||
|
7
|
7
51442-319-000
Piston,front fork
Use up to Frame SN 2093730 |
51442-319-000 |
— | ||
|
7
|
7
51421-341-701
Case,r.fork bot.
Use from Frame SN 2093731 |
51421-341-701 |
— | ||
|
8
|
8
51443-273-000
Valve, damper
Use up to Frame SN 2093730 |
51443-273-000 |
— | ||
|
8
|
8
51430-341-701
Pipe,bottom
Use from Frame SN 2093731 |
51430-341-701 |
— | ||
|
9
|
9
51432-357-000
Piece,oil lock
Use from Frame SN 2093731 |
51432-357-000 |
— | ||
|
10
|
10
51445-319-000
Snap,forkpiston
Use up to Frame SN 2093730 |
51445-319-000 |
— | ||
|
10
|
10
51437-329-010 Ring,pistonUse from Frame SN 2093731 |
51437-329-010 |
from US $8.44 |
||
|
11
|
11
51446-273-000
Ring
Use up to Frame SN 2093730 |
51446-273-000 |
— | ||
|
11
|
11
51500-341-702
Fork, l. front
Use from Frame SN 2093731 to 2102150 |
51500-341-702 |
— | ||
|
12
|
12
51447-273-000
Ring, piston stop
Use up to Frame SN 2093730 |
51447-273-000 |
— | ||
|
12
|
12
51521-341-701
Case,l.fork bot.
Use from Frame SN 2093731 |
51521-341-701 |
— | ||
|
13
|
13
51451-319-000
Guide,f.fork pipe
Use up to Frame SN 2093730 |
51451-319-000 |
— | ||
|
13
|
13
51601-300-000 Cushion forkUse from Frame SN 2093731 |
51601-300-000 |
from US $14.28 |
||
|
13
|
13
51602-341-670XW Cover,r fr forkUse from Frame SN 2093731 |
51602-341-670XW |
US $156.40 |
||
|
14
|
14
51452-319-010
Ring,back.up
Use up to Frame SN 2093730 |
51452-319-010 |
— | ||
|
14
|
14
51602-341-670XW Cover,r fr forkUse from Frame SN 2093731 |
51602-341-670XW |
US $156.40 |
||
|
15
|
15
51500-300-030
Fork assy l front
Use up to Frame SN 2093730 |
51500-300-030 |
— | ||
|
15
|
15
51606-341-670XW Cover,l fr.forkUse from Frame SN 2093731 |
51606-341-670XW |
US $161.84 |
||
|
16
|
16
51520-319-010
Case,l.bottom
Use up to Frame SN 2093730 |
51520-319-010 |
— | ||
|
16
|
16
51608-300-000 Rib front forkUse from Frame SN 2093731 |
51608-300-000 |
from US $19.31 |
||
|
17
|
17
51601-300-000 Cushion forkUse up to Frame SN 2093730 |
51601-300-000 |
from US $14.28 |
||
|
17
|
17
51611-300-000 Boots front forkUse from Frame SN 2093731 |
51611-300-000 |
from US $46.65 |
||
|
18
|
18
51602-341-670XW Cover,r fr forkUse up to Frame SN 2093730 |
51602-341-670XW |
US $156.40 |
||
|
18
|
18
51622-292-010 Cushion,forkcoverUse from Frame SN 2093731 |
51622-292-010 |
from US $7.99 |
||
|
19
|
19
51606-341-670XW Cover,l fr.forkUse up to Frame SN 2093730 |
51606-341-670XW |
US $161.84 |
||
|
19
|
19
90116-383-721 Bolt, socket (8mm)Use from Frame SN 2093731 |
90116-383-721 |
from US $3.85 |
||
|
20
|
20
51608-300-000 Rib front forkUse up to Frame SN 2093730 |
51608-300-000 |
from US $19.31 |
||
|
20
|
20
90123-300-000 Bolt,front forkUse from Frame SN 2093731 |
90123-300-000 |
from US $39.30 |
||
|
21
|
21
51611-300-000 Boots front forkUse up to Frame SN 2093730 |
51611-300-000 |
from US $46.65 |
||
|
21
|
21
90543-273-000 Gasket, fr.Use from Frame SN 2093731 |
90543-273-000 |
from US $2.15 |
||
|
22
|
22
51622-292-010 Cushion,forkcoverUse up to Frame SN 2093730 |
51622-292-010 |
from US $7.99 |
||
|
22
|
22
90544-283-000 Washer (8mm)Use from Frame SN 2093731 |
90544-283-000 |
from US $2.52 |
||
|
23
|
23
95014-41000 Holder,axleUse up to Frame SN 2093730 |
95014-41000 |
from US $7.70 |
||
|
23
|
23
91255-KBH-003 Seal,oil,35x48x11Use from Frame SN 2093731 to 2102150 |
91255-KBH-003 |
from US $11.99 |
||
|
24
|
24
90123-300-000 Bolt,front forkUse up to Frame SN 2093730 |
90123-300-000 |
from US $39.30 |
||
|
24
|
24
92101-06010-0A Bolt, hex., 6x10Use from Frame SN 2093731 |
92101-06010-0A |
from US $0.44 |
||
|
25
|
25
90543-273-000 Gasket, fr.Use up to Frame SN 2093730 |
90543-273-000 |
from US $2.15 |
||
|
25
|
25
92900-08028-3B Bolt, stud (8x50)Use from Frame SN 2093731 |
92900-08028-3B |
from US $0.74 |
||
|
26
|
26
94521-50000 Cir,clip.in.50mmUse up to Frame SN 2093730 |
94521-50000 |
US $1.48 |
||
|
26
|
26
94030-08000 NutHEX., 8MM Use from Frame SN 2093731 |
94030-08000 |
from US $0.44 |
||
|
27
|
27
91255-KBH-003 Seal,oil,35x48x11Use up to Frame SN 2093730 |
91255-KBH-003 |
from US $11.99 |
||
|
27
|
27
94030-08000 NutHEX., 8MM Use from Frame SN 2093731 |
94030-08000 |
from US $0.44 |
||
|
28
|
28
9460850000 O-ring, 23x2.8Use up to Frame SN 2093730 |
9460850000 |
from US $0.89 |
||
|
28
|
28
94101-08000 WasherPLAIN, 8MM Use from Frame SN 2093731 |
94101-08000 |
from US $0.37 |
||
|
29
|
29
92101-06010-0A Bolt, hex., 6x10Use up to Frame SN 2093730 |
92101-06010-0A |
from US $0.44 |
||
|
29
|
29
94111-08000 WasherSPRING, 8MM Use from Frame SN 2093731 |
94111-08000 |
from US $0.37 |
||
|
30
|
30
92900-08032-0B BoltSTUD, 8X32 Use up to Frame SN 2093730 |
92900-08032-0B |
from US $0.81 |
||
|
30
|
30
94521-48000 Cir clip,in 48mmUse from Frame SN 2093731 |
94521-48000 |
US $1.48 |
||
|
31
|
31
94030-08000 NutHEX., 8MM Use up to Frame SN 2093730 |
94030-08000 |
from US $0.44 |
||
|
31
|
31
9460850000 O-ring, 23x2.8Use from Frame SN 2093731 |
9460850000 |
from US $0.89 |
||
|
32
|
32
94101-08000 WasherPLAIN, 8MM Use up to Frame SN 2093730 |
94101-08000 |
from US $0.37 |
||
|
32
|
32
95014-41000 Holder,axleUse from Frame SN 2093731 |
95014-41000 |
from US $7.70 |
||
|
33
|
33
94111-08000 WasherSPRING, 8MM Use up to Frame SN 2093730 |
94111-08000 |
from US $0.37 |
||
