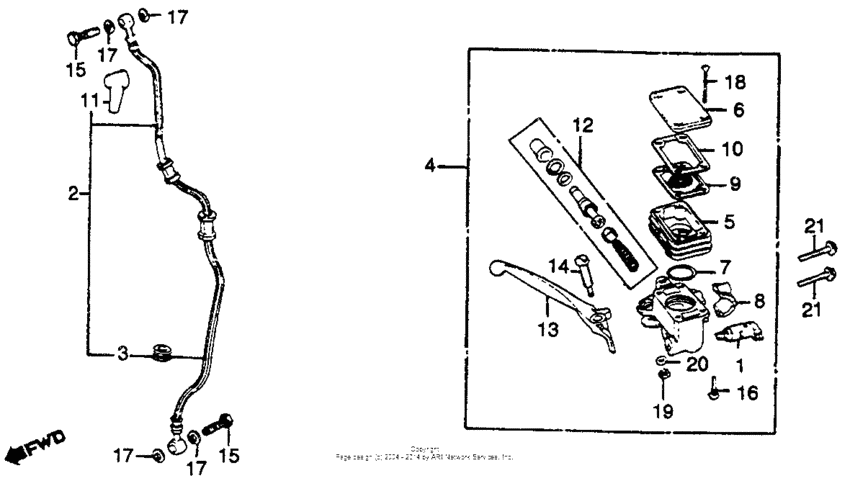

Cb750k/lfront brake master cyl 79-80 Diagram Honda CB750
- Year
- 1979
- Model code
- CB750L A
- Sales region
- USA
- Frame
- RC013000006 - RC013008810
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35340-422-013 Switch,fr.stop |
35340-422-013 |
US $19.58 |
||
|
2
|
2
45126-425-871
Hose, fr. brake
|
45126-425-871 |
— | ||
|
3
|
3
45146-300-000 Grommet, brake hose |
45146-300-000 |
from US $4.88 |
||
|
4
|
4
45500-413-874
Master cylinder, fr.
|
45500-413-874 |
— | ||
|
5
|
5
45511-463-006 Cup,oil |
45511-463-006 |
from US $40.92 |
||
|
6
|
6
45519-422-671
Cap set
|
45519-422-671 |
— | ||
|
7
|
7
45516-422-006 O-ring,39.7x3.5 |
45516-422-006 |
from US $10.79 |
||
|
8
|
8
45517-MA5-671 Holder |
45517-MA5-671 |
from US $13.74 |
||
|
9
|
9
45520-422-026 Diaphragm |
45520-422-026 |
US $21.13 |
||
|
10
|
10
45521-422-006 Plate,diaphragm |
45521-422-006 |
US $17.14 |
||
|
11
|
11
45522-422-000 Boot |
45522-422-000 |
from US $9.77 |
||
|
12
|
12
45530-442-315 Cylinder set,mas |
45530-442-315 |
from US $58.96 |
||
|
13
|
13
53175-438-010
Lever,r.strg.hndl
|
53175-438-010 |
— | ||
|
14
|
14
90114-422-000
Bolt,hndl.lever
|
90114-422-000 |
— | ||
|
15
|
15
95701-0603200 Bolt, flange, 6x32 |
95701-0603200 |
from US $0.59 |
||
|
16
|
16
90183-422-000
Screw,pan,4x13.5
|
90183-422-000 |
— | ||
|
17
|
17
90545-300-000 Washer |
90545-300-000 |
from US $3.18 |
||
|
18
|
18
93600-040-371-G Screw-flat,4x37 |
93600-040-371-G |
from US $0.37 |
||
|
19
|
19
94002-060-000-S NutHEX., 6MM |
94002-060-000-S |
from US $0.44 |
||
|
20
|
20
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
21
|
21
90105-425-870
Bolt, flange (6x25)
|
90105-425-870 |
— |
