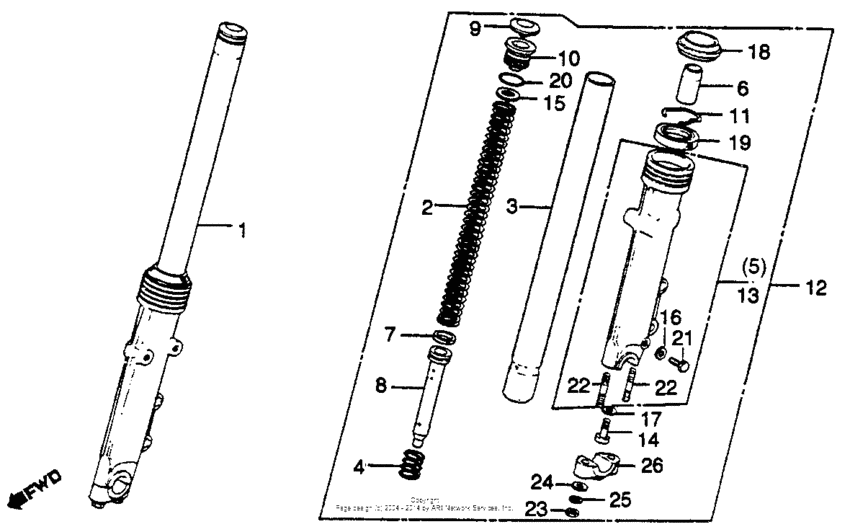

Cb750k/lfront fork 79-80 Diagram Honda CB750
- Year
- 1979
- Model code
- CB750L A
- Sales region
- USA
- Frame
- RC013000006 - RC013008810
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51400-425-871
Fork assy., r. fr.
|
51400-425-871 |
— | ||
|
2
|
2
51401-425-000
Spring,fr.cushion
|
51401-425-000 |
— | ||
|
3
|
3
51410-425-003
Pipe.,fr.fork
|
51410-425-003 |
— | ||
|
4
|
4
51412-340-000 Spring, fr |
51412-340-000 |
from US $4.14 |
||
|
5
|
5
51421-425-871
Case,r.bottom
|
51421-425-871 |
— | ||
|
6
|
6
51432-371-003
Piece, oil lock
|
51432-371-003 |
— | ||
|
7
|
7
51437-400-771 Ring, piston |
51437-400-771 |
from US $4.30 |
||
|
8
|
8
51440-425-003
Pipe,seat
|
51440-425-003 |
— | ||
|
9
|
9
51449-428-003 Cap,fork pipe |
51449-428-003 |
US $6.07 |
||
|
10
|
10
51454-422-003
Bolt,fr.fork
|
51454-422-003 |
— | ||
|
10
|
10
51454-428-003
Bolt,fr.fork
|
51454-428-003 |
— | ||
|
11
|
11
51447-KL4-951 Ring |
51447-KL4-951 |
from US $2.66 |
||
|
12
|
12
51500-425-871
Fork Assy., L. Fr.
|
51500-425-871 |
— | ||
|
13
|
13
51521-425-871
Case,l.bottom
|
51521-425-871 |
— | ||
|
14
|
14
90116-383-721 Bolt, socket (8mm) |
90116-383-721 |
from US $3.85 |
||
|
15
|
15
90504-425-003
Washer,fr.fork
|
90504-425-003 |
— | ||
|
16
|
16
90543-273-000 Gasket, fr. |
90543-273-000 |
from US $2.15 |
||
|
17
|
17
90544-283-000 Washer (8mm) |
90544-283-000 |
from US $2.52 |
||
|
18
|
18
91254-434-003 Dust seal,35mm |
91254-434-003 |
from US $11.19 |
||
|
19
|
19
91255-KBH-003 Seal,oil,35x48x11 |
91255-KBH-003 |
from US $11.99 |
||
|
20
|
20
91356-428-003 O-ring (25.7x2.8) |
91356-428-003 |
from US $3.92 |
||
|
21
|
21
92101-06008-0A Bolt, hex., 6x8 |
92101-06008-0A |
from US $0.44 |
||
|
22
|
22
92900-08028-3B Bolt, stud (8x50) |
92900-08028-3B |
from US $0.74 |
||
|
23
|
23
9403008020
Nut, hex. (8mm)
|
9403008020 |
— | ||
|
24
|
24
91554-371-980
Washer, plain (8mm)
|
91554-371-980 |
— | ||
|
25
|
25
91563-371-980
Washer,spg.8mm
|
91563-371-980 |
— | ||
|
26
|
26
51634-425-871 Holder,axle |
51634-425-871 |
US $29.99 |
