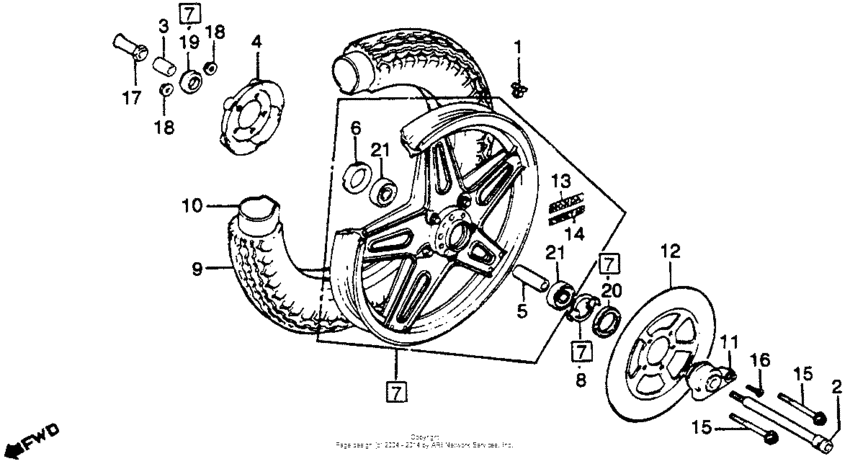

Cb750l front wheel Diagram Honda CB750
- Year
- 1979
- Model code
- CB750L A
- Sales region
- USA
- Frame
- RC013000006 - RC013008810
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42705-410-000 Balancer (20g) |
42705-410-000 |
US $11.08 |
||
|
1
|
1
42706-410-000 Ballance (30g) |
42706-410-000 |
US $13.43 |
||
|
2
|
2
44301-425-870
Axle,fr.wheel
|
44301-425-870 |
— | ||
|
3
|
3
44311-425-870
Colr, fr. wheel side
|
44311-425-870 |
— | ||
|
4
|
4
44607-426-770
Cover, fr. wheel hub
|
44607-426-770 |
— | ||
|
5
|
5
44620-410-000
Collar, fr
|
44620-410-000 |
— | ||
|
6
|
6
44643-300-000 Retainer fr wheel |
44643-300-000 |
from US $14.06 |
||
|
7
|
7
44650-426-771
Wheel comp.,fr.
|
44650-426-771 |
— | ||
|
8
|
8
44680-410-000 Retainer, gear box |
44680-410-000 |
from US $4.48 |
||
|
9
|
9
44711-425-671 Tire (3.50h19) (4pr) |
44711-425-671 |
US $73.93 |
||
|
9
|
9
44711-425-672
Tire (3.50h19) (4pr)
|
44711-425-672 |
— | ||
|
10
|
10
42712-KT1-671
Tube (100/100-18)
|
42712-KT1-671 |
— | ||
| replacement | |||||
|
10
|
10
42712-KT1-673 TUBE (120/80-18) |
42712-KT1-673 |
from US $34.22 |
||
|
10
|
10
44712-371-003
Tube325/350-19tr6
|
44712-371-003 |
— | ||
|
10
|
10
44712-300-004 Tube (3.25/3.50-19) |
44712-300-004 |
from US $58.01 |
||
|
11
|
11
44800-425-013
Box,s/meter gear
|
44800-425-013 |
— | ||
|
12
|
12
45251-425-000
Disk,fr.brake
|
45251-425-000 |
— | ||
|
13
|
13
87108-426-770
Mark,spoke plate
|
87108-426-770 |
— | ||
|
14
|
14
87109-426-770
Mark,spoke plate
|
87109-426-770 |
— | ||
|
15
|
15
90123-425-000 Bolt,flange,8x97 |
90123-425-000 |
US $6.94 |
||
|
16
|
16
90135-425-870
Screw, oval (5x16)
|
90135-425-870 |
— | ||
|
17
|
17
90305-425-870
Nut, axle (18mm)
|
90305-425-870 |
— | ||
|
18
|
18
90309-357-000 Nut, hex., 8mm |
90309-357-000 |
from US $5.03 |
||
|
19
|
19
91252-300-003 Dust,seal |
91252-300-003 |
from US $10.06 |
||
|
20
|
20
91258-410-013 Dust seal (40x50x5) |
91258-410-013 |
from US $3.60 |
||
|
21
|
21
96150-6302010 Bearing (6302uu) |
96150-6302010 |
from US $9.18 |
||
