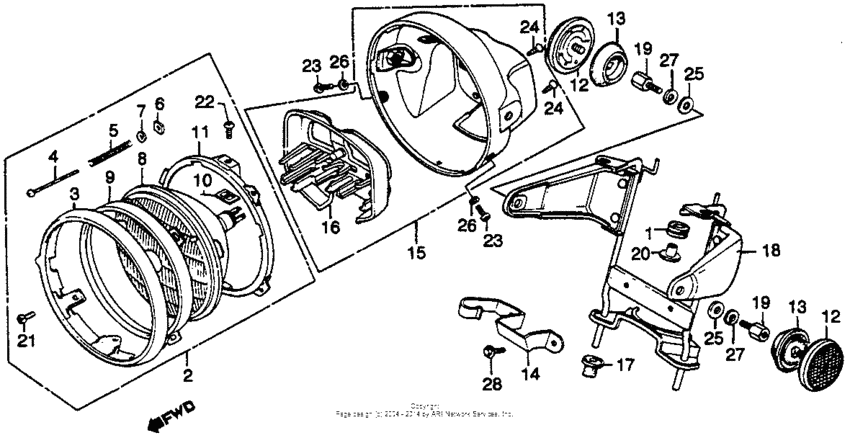

Cb750l headlight 79 Diagram Honda CB750
- Year
- 1979
- Model code
- CB750L A
- Sales region
- USA
- Frame
- RC013000006 - RC013008810
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17245-107-010 Rubber |
17245-107-010 |
from US $2.23 |
||
|
2
|
2
33100-425-870
Headlight assy
|
33100-425-870 |
— | ||
|
3
|
3
33101-425-870
Rim, headlight
|
33101-425-870 |
— | ||
|
4
|
4
33103-346-670 Screw |
33103-346-670 |
from US $6.82 |
||
| replacement | |||||
|
4
|
4
33103-MW3-610 Screw,beam adjust |
33103-MW3-610 |
from US $9.98 |
||
|
5
|
5
33107-300-003 Spring |
33107-300-003 |
from US $3.40 |
||
|
6
|
6
33117-001-023 Nut, headlight beam adjusting |
33117-001-023 |
from US $2.59 |
||
|
7
|
7
33119-371-003 Washer |
33119-371-003 |
from US $2.81 |
||
|
8
|
8
33120-431-505
Set unit,head lig
|
33120-431-505 |
— | ||
|
9
|
9
33121-405-671
Ring, retaining
|
33121-405-671 |
— | ||
|
10
|
10
33128-292-670 Nut, unit holder |
33128-292-670 |
from US $3.51 |
||
|
11
|
11
33153-422-003
Ring,mounting
|
33153-422-003 |
— | ||
|
12
|
12
33741-340-670 Reflector,reflex |
33741-340-670 |
US $34.15 |
||
| replacement | |||||
|
12
|
12
33741-102-870 Reflector, fr. |
33741-102-870 |
from US $28.70 |
||
|
13
|
13
33743-375-000 Base,fr reflector |
33743-375-000 |
US $10.79 |
||
|
14
|
14
45128-425-870
Clip b,brake hose
|
45128-425-870 |
— | ||
|
15
|
15
61301-425-871
Case, headlight
|
61301-425-871 |
— | ||
|
16
|
16
61305-425-871
Holder,coupler
|
61305-425-871 |
— | ||
|
17
|
17
61313-422-000 Grommet b, headlight |
61313-422-000 |
from US $6.17 |
||
|
18
|
18
61315-425-870
Brkt,hd/lt case
|
61315-425-870 |
— | ||
|
19
|
19
90120-425-000
Bolt,headlight
|
90120-425-000 |
— | ||
|
20
|
20
90501-425-000 Collar6.2X12 |
90501-425-000 |
from US $3.70 |
||
|
21
|
21
93500-030080H Screw, pan, 3x8 |
93500-030080H |
from US $0.37 |
||
|
22
|
22
93500-050-080-H ScrewPAN, 5X8 |
93500-050-080-H |
from US $0.37 |
||
|
23
|
23
93500-050-160-B ScrewPAN, 5X16 |
93500-050-160-B |
from US $0.52 |
||
|
24
|
24
93902-34310 Screw,tapping4x12 |
93902-34310 |
US $0.37 |
||
|
25
|
25
9410110000 Washer, plain, 10mm |
9410110000 |
from US $0.44 |
||
|
26
|
26
94111-05000 WasherSPRING, 5MM |
94111-05000 |
from US $0.37 |
||
|
27
|
27
94111-10000 WasherSPRING, 10MM |
94111-10000 |
from US $0.44 |
||
|
28
|
28
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
||
