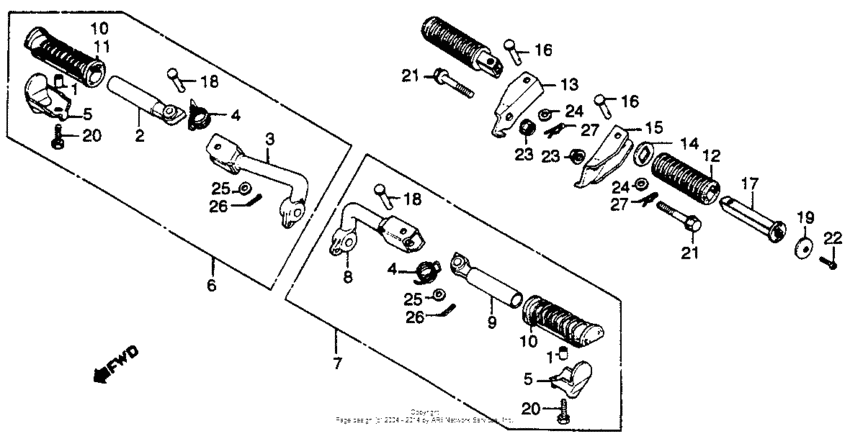

Cb750l step 79 Diagram Honda CB750
- Year
- 1979
- Model code
- CB750L A
- Sales region
- USA
- Frame
- RC013000006 - RC013008810
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37243-323-000 Collar,meter set |
37243-323-000 |
US $3.33 |
||
|
2
|
2
50612-438-000
Arm comp.,r.step
|
50612-438-000 |
— | ||
|
3
|
3
50615-425-870
Bar, r. step
|
50615-425-870 |
— | ||
|
4
|
4
50617-438-000
Spg.,step return
|
50617-438-000 |
— | ||
|
5
|
5
50619-425-010 Stopper,rubber |
50619-425-010 |
US $7.10 |
||
|
6
|
6
50630-425-871
Step assy., r.
Use up to Frame SN 3007270 |
50630-425-871 |
— | ||
|
7
|
7
50640-425-870
Step assy., l.
|
50640-425-870 |
— | ||
|
8
|
8
50641-425-870
Bar, l. step
|
50641-425-870 |
— | ||
|
9
|
9
50642-438-000
Arm comp.,l.step
|
50642-438-000 |
— | ||
|
10
|
10
50661-425-670 Rubber,stepUse up to Frame SN 3007270 |
50661-425-670 |
from US $12.58 |
||
|
11
|
11
50662-425-670
Rubber, r. step
Use from Frame SN 3007271 |
50662-425-670 |
— | ||
|
12
|
12
50716-371-660 Rub, pillion footpeg |
50716-371-660 |
from US $17.32 |
||
|
13
|
13
50711-425-000
Bracket,r.p.step
|
50711-425-000 |
— | ||
|
14
|
14
50712-377-000 Washer,pillion |
50712-377-000 |
US $5.48 |
||
|
15
|
15
50712-425-000
Bracket,l.p.step
|
50712-425-000 |
— | ||
|
16
|
16
50714-425-870
Pin b,step
|
50714-425-870 |
— | ||
|
17
|
17
50715-371-980
Bar,pillion step
|
50715-371-980 |
— | ||
|
18
|
18
50716-445-000
Pin,step joint
|
50716-445-000 |
— | ||
|
19
|
19
50717-371-660
Cover,step
|
50717-371-660 |
— | ||
|
20
|
20
90104-430-000
Bolt,r.bot.case
|
90104-430-000 |
— | ||
|
21
|
21
90182-438-000
Bolt,flange 10x40
|
90182-438-000 |
— | ||
|
22
|
22
93700-040-120-B Screw cross 4x12 |
93700-040-120-B |
from US $0.52 |
||
|
23
|
23
94050-10000 NutFLANGE, 10MM |
94050-10000 |
from US $0.74 |
||
|
24
|
24
9410106200 Washer, plain, 6mm |
9410106200 |
from US $0.44 |
||
|
25
|
25
9410108200 Washer, plain, 8mm |
9410108200 |
from US $0.44 |
||
|
26
|
26
9420116250 Pin, cotter (1.6x25) |
9420116250 |
from US $0.44 |
||
|
27
|
27
94251-06000 PinLOCK, 6MM |
94251-06000 |
from US $0.44 |
