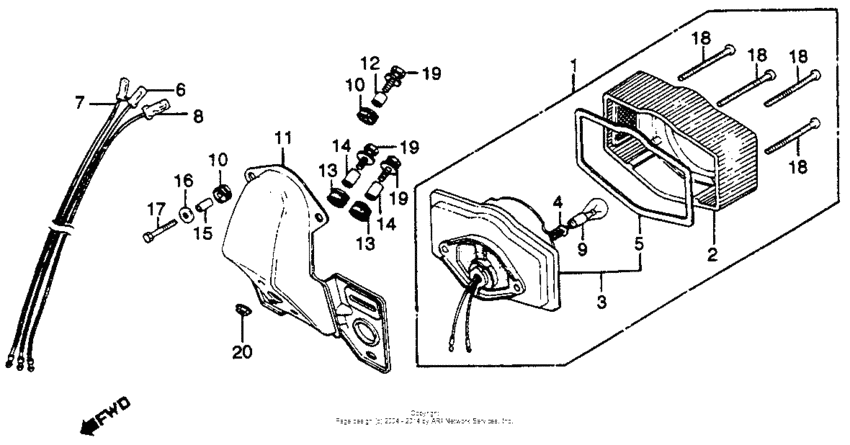

Cb750l tailllight (cb750l'79) 79 Diagram Honda CB750
- Year
- 1979
- Model code
- CB750L A
- Sales region
- USA
- Frame
- RC013000006 - RC013008810
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33701-341-671
Unit,tail light
|
33701-341-671 |
— | ||
|
2
|
2
33702-341-671 Lens,tail light |
33702-341-671 |
from US $56.29 |
||
|
3
|
3
33703-341-671
Base,tail light
|
33703-341-671 |
— | ||
|
4
|
4
33708-098-000 Wire, taillight |
33708-098-000 |
US $7.84 |
||
|
5
|
5
33709-341-671
Packing,tail lt.
|
33709-341-671 |
— | ||
|
6
|
6
33710-342-670 Cord,stop light |
33710-342-670 |
US $9.35 |
||
|
7
|
7
33711-342-670
Cord,tail light
|
33711-342-670 |
— | ||
|
8
|
8
33712-342-670
Cord,tail earth
|
33712-342-670 |
— | ||
|
9
|
9
34906-MG9-771 Bulb (12v27/7w) |
34906-MG9-771 |
from US $5.10 |
||
|
10
|
10
80101-283-000 Rubber, rr. fender cushion |
80101-283-000 |
from US $4.29 |
||
|
11
|
11
84700-425-870
Brkt,number plate
|
84700-425-870 |
— | ||
|
12
|
12
84706-286-000 Collar no bracket |
84706-286-000 |
from US $2.74 |
||
|
13
|
13
84905-333-000 Rubber, fender |
84905-333-000 |
from US $4.44 |
||
|
14
|
14
84906-118-000 Collar, number bracket setting |
84906-118-000 |
from US $2.37 |
||
|
15
|
15
90503-KB7-940 Collar.6.2x13.5 |
90503-KB7-940 |
from US $2.15 |
||
|
16
|
16
90581-310-000 Washer,18m/m |
90581-310-000 |
from US $2.74 |
||
|
17
|
17
92101-05025-0A Bolt, hex. (5x25) |
92101-05025-0A |
from US $0.47 |
||
|
18
|
18
93500-040-554-J Screw,pan,4x55 |
93500-040-554-J |
from US $0.44 |
||
|
19
|
19
93494-060-220-0 Bolt-washer,6x22 |
93494-060-220-0 |
from US $0.59 |
||
| replacement | |||||
|
19
|
19
93404-0602200 Bolt-washer (6x22) |
93404-0602200 |
from US $0.59 |
||
|
20
|
20
94071-06080 Nut-washer6MM |
94071-06080 |
from US $0.52 |
||
