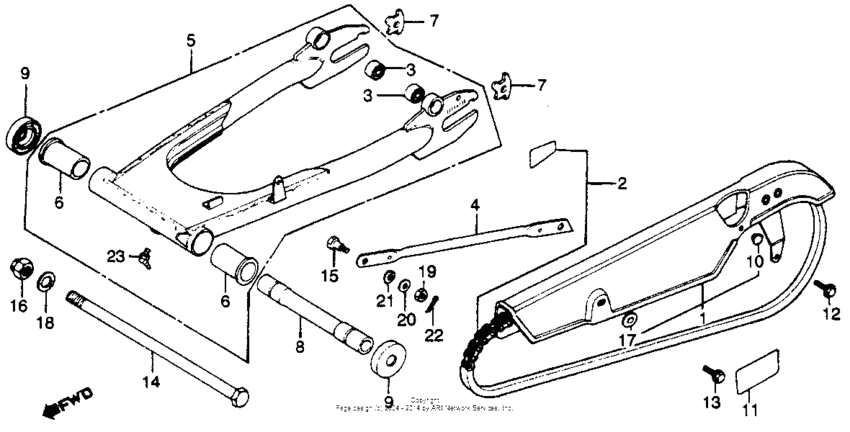

Swingarm + chain case Diagram Honda CB750
- Year
- 1979
- Model code
- CB750L A
- Sales region
- USA
- Frame
- RC013000006 - RC013008810
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
40510-425-871
Case,drive chain
|
40510-425-871 |
— | ||
|
2
|
2
40535-425-721
Chain set,drive
|
40535-425-721 |
— | ||
|
2
|
2
40535-425-722
Chain set,drive
|
40535-425-722 |
— | ||
|
3
|
3
40548-268-000 Bush, rubber |
40548-268-000 |
from US $7.10 |
||
|
4
|
4
43431-MK7-000
Arm rr brk,stpr
|
43431-MK7-000 |
— | ||
|
5
|
5
52100-425-870ZA
Fork,rr. *nh-1*
|
52100-425-870ZA |
— | ||
|
6
|
6
52108-457-300 Bush,rr.forkpivot |
52108-457-300 |
from US $33.56 |
||
|
7
|
7
52136-ME1-670
Stopper,chain adj
|
52136-ME1-670 |
— | ||
|
8
|
8
52141-422-020
Collar,rr.fork c
|
52141-422-020 |
— | ||
|
9
|
9
52144-362-000 Cap,dust seal |
52144-362-000 |
US $16.59 |
||
|
11
|
11
87505-425-871
Mark, tire caution
|
87505-425-871 |
— | ||
|
12
|
12
90107-425-870
Bolt, flange (6x10)
|
90107-425-870 |
— | ||
|
13
|
13
90110-425-870
Bolt, flange (6x10)
|
90110-425-870 |
— | ||
|
14
|
14
90121-425-870
Bolt,rr.forkpivot
|
90121-425-870 |
— | ||
|
15
|
15
90133-286-000 Bolt, rr |
90133-286-000 |
from US $4.59 |
||
|
16
|
16
90354-438-000
Nut,lock 14mm
|
90354-438-000 |
— | ||
|
18
|
18
90600-425-870
Washer,plain,14mm
|
90600-425-870 |
— | ||
|
19
|
19
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
20
|
20
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
21
|
21
94111-10000 WasherSPRING, 10MM |
94111-10000 |
from US $0.44 |
||
|
22
|
22
94201-29220
Pin
|
94201-29220 |
— | ||
| replacements | |||||
|
22
|
22
94201-20220 Pin 2.0X22SPLIT, 2.0X22 |
94201-20220 |
US $0.44 |
||
|
22
|
22
9420120350 Pin, cotter (2.0x35) |
9420120350 |
from US $0.44 |
||
|
22
|
22
94201-20220 Pin 2.0X22SPLIT, 2.0X22 |
94201-20220 |
US $0.44 |
||
|
22
|
22
9420120350 Pin, cotter (2.0x35) |
9420120350 |
from US $0.44 |
||
|
23
|
23
9620160000 Fitting (c.76) |
9620160000 |
from US $1.85 |
||
