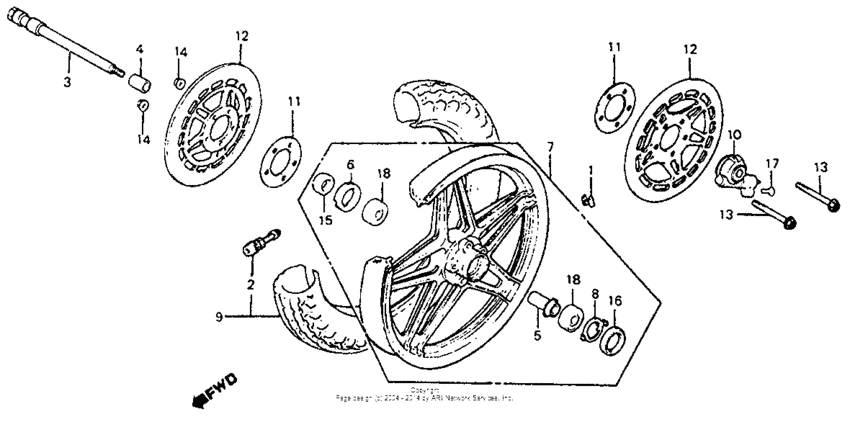

Front wheel Diagram Honda CB750 Nighthawk
- Year
- 1982
- Model code
- CB750SC A
- Sales region
- USA
- Frame
- JH2RC012*CM000019 - JH2RC012*CM012103
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42704-ME1-670 Weight (10g) |
42704-ME1-670 |
US $11.08 |
||
|
1
|
1
42705-ME1-670
Weight,balance
|
42705-ME1-670 |
— | ||
|
1
|
1
42706-ME1-670
Weight,balance,
|
42706-ME1-670 |
— | ||
|
2
|
2
42753-425-003 Valve, rim |
42753-425-003 |
from US $13.17 |
||
|
3
|
3
44301-461-770 Axle, fr. wheel |
44301-461-770 |
US $71.81 |
||
|
4
|
4
44311-460-840 Colr, fr. wheel side |
44311-460-840 |
US $14.51 |
||
|
5
|
5
44620-ME1-670
Collar,fr.wheel
|
44620-ME1-670 |
— | ||
|
6
|
6
44643-300-000 Retainer fr wheel |
44643-300-000 |
from US $14.06 |
||
|
7
|
7
44650-ME1-670
Wheel, fr
|
44650-ME1-670 |
— | ||
|
8
|
8
44680-410-000 Retainer, gear box |
44680-410-000 |
from US $4.48 |
||
|
9
|
9
44710-MB9-673
Tire assy.,fr,
|
44710-MB9-673 |
— | ||
|
10
|
10
44800-ME1-671
Gear box,spdmt
|
44800-ME1-671 |
— | ||
|
11
|
11
45128-445-630 Shim, damping |
45128-445-630 |
US $4.07 |
||
|
12
|
12
45251-413-941
Disk,fr.brake
|
45251-413-941 |
— | ||
|
13
|
13
90113-GY8-900 Bolt, flange (8x104) |
90113-GY8-900 |
US $3.02 |
||
|
14
|
14
90308-460-841 Nut,flange,8mm |
90308-460-841 |
from US $4.95 |
||
|
14
|
14
90309-MR1-770 Nut, flange, 8mm |
90309-MR1-770 |
from US $3.83 |
||
|
15
|
15
91252-MC7-003 Dust seal (22x42x7) |
91252-MC7-003 |
from US $6.07 |
||
|
16
|
16
91258-410-013 Dust seal (40x50x5) |
91258-410-013 |
from US $3.60 |
||
|
17
|
17
93700-050200G Screw, oval (5x20) |
93700-050200G |
from US $0.37 |
||
|
18
|
18
96150-6302010 Bearing (6302uu) |
96150-6302010 |
from US $9.18 |
