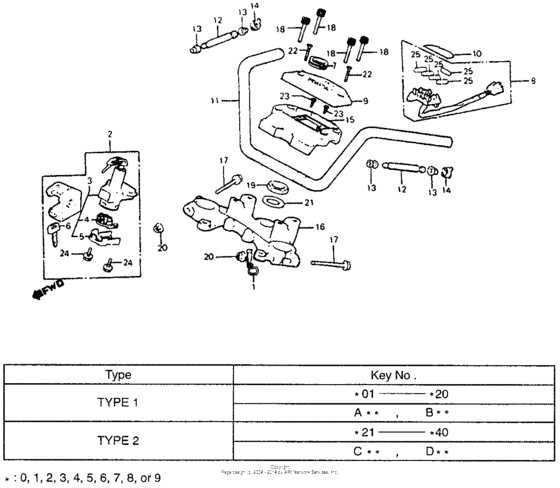

Handlebar + top bridge Diagram Honda CB750 Nighthawk
- Year
- 1982
- Model code
- CB750SC A
- Sales region
- USA
- Frame
- JH2RC012*CM000019 - JH2RC012*CM012103
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17918-MA1-000
Guide l.,cable
|
17918-MA1-000 |
— | ||
|
2
|
2
35010-ME1-671
Lock set
|
35010-ME1-671 |
— | ||
|
3
|
3
35100-422-017
Switch assy
|
35100-422-017 |
— | ||
|
4
|
4
35101-422-007
Base comp,contact
|
35101-422-007 |
— | ||
|
5
|
5
35102-431-007 Cover,switch |
35102-431-007 |
US $5.48 |
||
|
6
|
6
35122-KW3-771 Key, blank (type2) |
35122-KW3-771 |
from US $9.01 |
||
|
6
|
6
35121-KW3-771 Key, blank (type1) |
35121-KW3-771 |
from US $8.58 |
||
|
7
|
7
37623-415-000
Rubber,ig.sw set
|
37623-415-000 |
— | ||
|
8
|
8
38200-MF9-405
Box assy fuse
|
38200-MF9-405 |
— | ||
|
9
|
9
38210-425-000
Cover,fuse plate
|
38210-425-000 |
— | ||
|
10
|
10
38215-MA4-670
Label,fuse
|
38215-MA4-670 |
— | ||
|
11
|
11
53100-ME1-670
Pipe,strg.handle
|
53100-ME1-670 |
— | ||
|
12
|
12
53105-449-830
Weight,handle
|
53105-449-830 |
— | ||
|
12
|
12
53106-415-000 Weight,handle |
53106-415-000 |
from US $16.88 |
||
|
13
|
13
53107-425-000
Rubber
|
53107-425-000 |
— | ||
|
14
|
14
53108-MK4-000 Ring |
53108-MK4-000 |
from US $5.62 |
||
|
15
|
15
53131-ME1-670
Hldr, handle (upper)
|
53131-ME1-670 |
— | ||
|
16
|
16
53230-461-770
Bridge,fork top
|
53230-461-770 |
— | ||
|
17
|
17
90159-ME1-670
Bolt, flange
|
90159-ME1-670 |
— | ||
|
18
|
18
90185-371-000 Bolt (8x32) |
90185-371-000 |
from US $4.62 |
||
|
19
|
19
90304-KA2-000
Nut, steering stem
|
90304-KA2-000 |
— | ||
|
20
|
20
90360-428-900
Nut, cap. (7mm)
|
90360-428-900 |
— | ||
|
21
|
21
90503-ME1-670
Washer,strg.stem
|
90503-ME1-670 |
— | ||
|
22
|
22
93700-050200G Screw, oval (5x20) |
93700-050200G |
from US $0.37 |
||
|
23
|
23
93901-12120 ScrewTAPPING, 3X8 |
93901-12120 |
US $0.37 |
||
|
24
|
24
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
||
|
25
|
25
98200-21500 Fuse b15A |
98200-21500 |
from US $0.62 |
