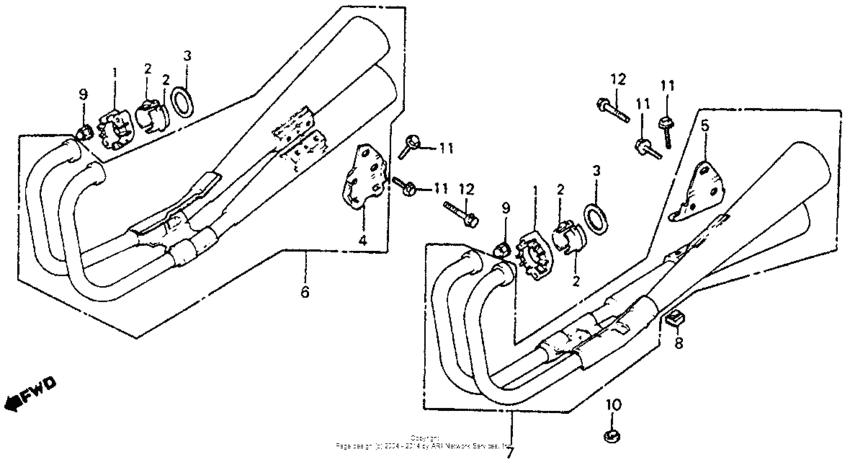

Muffler Diagram Honda CB750 Nighthawk
- Year
- 1982
- Model code
- CB750SC A
- Sales region
- USA
- Frame
- JH2RC012*CM000019 - JH2RC012*CM012103
- Engine Capacity
- 750
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18231-425-000
Joint,ex.pipe
|
18231-425-000 |
— | ||
|
2
|
2
18233-425-000 Collar,pipe joint |
18233-425-000 |
from US $18.50 |
||
|
3
|
3
18291-MM5-860 Gasket, ex. pipe |
18291-MM5-860 |
from US $3.13 |
||
|
4
|
4
18312-ME1-670
Brkt.,r.muffler
|
18312-ME1-670 |
— | ||
|
5
|
5
18313-ME1-670
Brkt.,l.muffler
|
18313-ME1-670 |
— | ||
|
6
|
6
18350-ME1-677
Muffler assy.,r.
|
18350-ME1-677 |
— | ||
|
7
|
7
18400-ME1-677
Muffler assy.,l.
|
18400-ME1-677 |
— | ||
|
8
|
8
50524-MG9-000 Rubber |
50524-MG9-000 |
from US $4.28 |
||
|
9
|
9
90304-ME1-670 Nut, cap (8mm) |
90304-ME1-670 |
from US $4.59 |
||
|
10
|
10
9501163000 Rubber c, stand stopper |
9501163000 |
from US $1.63 |
||
|
11
|
11
95700-0801600 Bolt, flange, 8x16 |
95700-0801600 |
from US $0.59 |
||
| replacement | |||||
|
11
|
11
95701-0801600 Bolt, flange, 8x16 |
95701-0801600 |
from US $0.62 |
||
|
11
|
11
95701-0801600 Bolt, flange, 8x16 |
95701-0801600 |
from US $0.62 |
||
|
12
|
12
95701-1004000 Bolt, flange, 10x40 |
95701-1004000 |
from US $0.81 |
||
