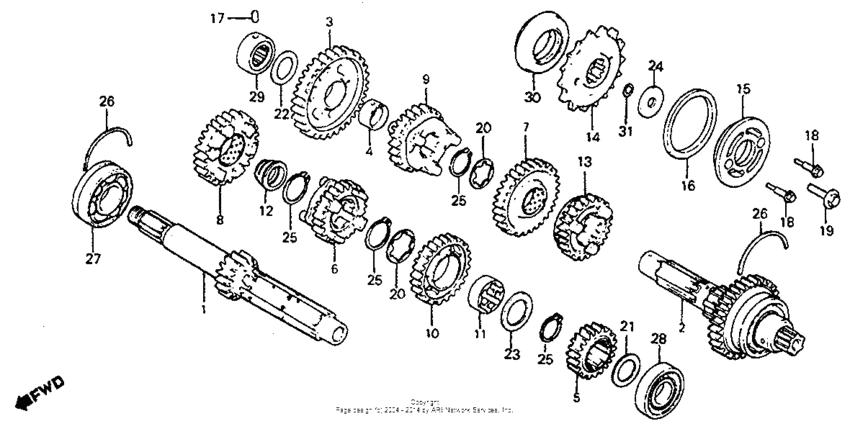

Transmission Diagram Honda CB750 Nighthawk
- Year
- 1982
- Model code
- CB750SC A
- Sales region
- USA
- Frame
- JH2RC012*CM000019 - JH2RC012*CM012103
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23211-425-000 M/shaft,trns(15t)Use up to Engine SN 2313475 |
23211-425-000 |
US $332.30 |
||
|
1
|
1
23211-425-010
M/shaft,trans(15t
Use from Engine SN 2313476 |
23211-425-010 |
— | ||
|
2
|
2
23220-425-010
Shaft,counter
|
23220-425-010 |
— | ||
|
3
|
3
23411-425-000
Gear,ct/shaft low
|
23411-425-000 |
— | ||
|
4
|
4
23422-425-000
Bush,ct/shaft gea
|
23422-425-000 |
— | ||
|
5
|
5
23431-425-000
Gear,m/shaft 2nd
Use up to Engine SN 2313475 |
23431-425-000 |
— | ||
|
5
|
5
23431-425-010
Gear,m/shaft 2nd
Use from Engine SN 2313476 |
23431-425-010 |
— | ||
|
6
|
6
23451-MC3-630
Gear,m-3
|
23451-MC3-630 |
— | ||
|
7
|
7
23461-438-010
Gear.c/shaft.3rd
|
23461-438-010 |
— | ||
|
8
|
8
23471-425-030
M-4 gear,(25t)
|
23471-425-030 |
— | ||
|
9
|
9
23481-438-000
Gear,ct/shaft 4th
|
23481-438-000 |
— | ||
|
10
|
10
23491-MG1-670
Gear,m/shaft 5th
|
23491-MG1-670 |
— | ||
|
11
|
11
23495-422-000
Coll,spline,28x17
|
23495-422-000 |
— | ||
|
12
|
12
23496-438-310
Bush,28mm
|
23496-438-310 |
— | ||
|
13
|
13
23501-MC3-630
Gear,c-5
|
23501-MC3-630 |
— | ||
|
14
|
14
23801-445-770
Sprkt.,drive,18t
|
23801-445-770 |
— | ||
|
15
|
15
23820-425-730
Guide,ring
|
23820-425-730 |
— | ||
|
16
|
16
23821-425-730
Ring,damper
|
23821-425-730 |
— | ||
|
17
|
17
24261-283-000 Pin |
24261-283-000 |
from US $4.22 |
||
|
18
|
18
90020-438-000 Bolt, flange (6x20) |
90020-438-000 |
from US $3.33 |
||
|
19
|
19
90037-422-003 Bolt, special (10mm) |
90037-422-003 |
from US $3.62 |
||
|
20
|
20
90451-422-000 Washer (28mm) |
90451-422-000 |
US $9.76 |
||
|
21
|
21
90453-426-000
Washer (22.5mm)
|
90453-426-000 |
— | ||
|
22
|
22
90457-425-000
Washer,thrust 22
|
90457-425-000 |
— | ||
|
23
|
23
90451-422-000 Washer (28mm)Use from Engine SN 2313476 |
90451-422-000 |
US $9.76 |
||
|
23
|
23
90457-703-000
Washer,thrust,27
Use up to Engine SN 2313475 |
90457-703-000 |
— | ||
|
24
|
24
90459-438-000 Washer (10.2mm) |
90459-438-000 |
from US $4.59 |
||
|
25
|
25
90601-422-000 Circlip (28mm)Use up to Engine SN 2313475 |
90601-422-000 |
from US $3.55 |
||
|
26
|
26
90602-428-000
Ring,set,62mm.
|
90602-428-000 |
— | ||
|
27
|
27
91004-MG5-671
Bearing (6305)
|
91004-MG5-671 |
— | ||
|
27
|
27
91004-657-008 Bearing, ball (6305) |
91004-657-008 |
from US $12.88 |
||
|
28
|
28
91005-425-003
B/brg rad n/com
|
91005-425-003 |
— | ||
|
29
|
29
91022-438-008
Needle brg
|
91022-438-008 |
— | ||
|
30
|
30
91205-425-003 Oil seal,40x62x13 |
91205-425-003 |
from US $26.63 |
||
|
31
|
31
91305-422-000 O-ring (9.8x2.4) |
91305-422-000 |
from US $3.70 |
