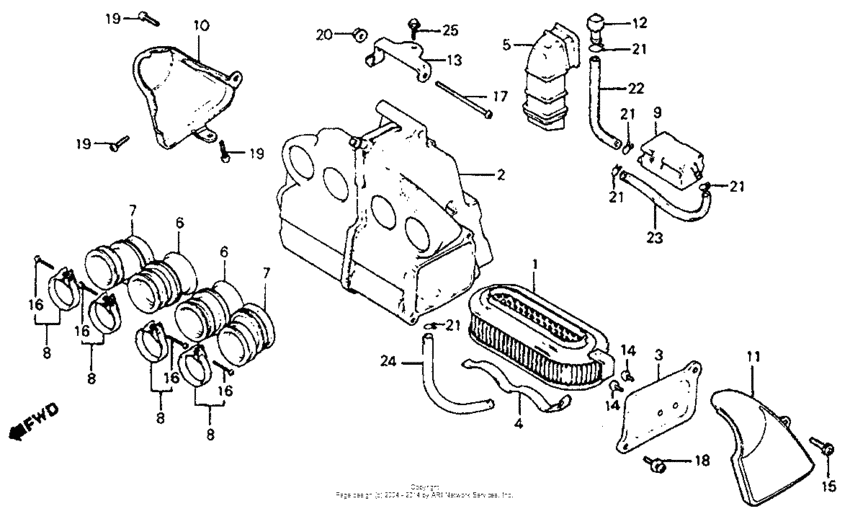

Air cleaner Diagram Honda CB750 Nighthawk
- Year
- 1983
- Model code
- CB750SC A
- Sales region
- USA
- Frame
- JH2RC012*DM100001 - JH2RC012*DM102116
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17211-425-000 Elmt,air cleaner |
17211-425-000 |
from US $40.14 |
||
|
2
|
2
17213-425-020
Case,air cleaner
|
17213-425-020 |
— | ||
|
3
|
3
17222-ME1-670
Cap,air cleaner
|
17222-ME1-670 |
— | ||
|
4
|
4
17223-425-000
Spg,element set
|
17223-425-000 |
— | ||
|
5
|
5
17240-425-670
Duct,air/c in
|
17240-425-670 |
— | ||
|
6
|
6
17253-425-000 Tube a,air/c conn |
17253-425-000 |
from US $28.29 |
||
|
7
|
7
17254-425-000 Tube b,air/c conn |
17254-425-000 |
from US $28.29 |
||
|
8
|
8
9501860250 Band (60) |
9501860250 |
from US $3.26 |
||
|
9
|
9
17300-425-000
Tank,storage
|
17300-425-000 |
— | ||
|
10
|
10
17312-ME1-670
Cover,r.air/c
|
17312-ME1-670 |
— | ||
|
11
|
11
17313-ME1-670
Cover,l.air/c
|
17313-ME1-670 |
— | ||
|
12
|
12
17370-419-700 Plug, breather tube |
17370-419-700 |
from US $3.48 |
||
|
13
|
13
17375-425-000
Stay,air/c hanger
|
17375-425-000 |
— | ||
|
14
|
14
93500-040-060-A ScrewPAN, 4X6 |
93500-040-060-A |
from US $0.37 |
||
|
15
|
15
93500-050180G Screw, pan, 5x18 |
93500-050180G |
from US $0.38 |
||
|
16
|
16
93500-050250G Screw, pan, 5x25 |
93500-050250G |
from US $0.44 |
||
|
17
|
17
93500-060-700-A Screw, pan (6x70) |
93500-060-700-A |
from US $0.81 |
||
|
18
|
18
93891-050-160-7 Screw-washer5X16 |
93891-050-160-7 |
from US $0.22 |
||
|
19
|
19
93901-14380 ScrewTAPPING, 4X12 |
93901-14380 |
from US $0.38 |
||
|
20
|
20
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
21
|
21
9500280000 Clip, tube (c12) |
9500280000 |
from US $0.44 |
||
|
22
|
22
95003-230-0860M
Bulk hose, vinyl
|
95003-230-0860M |
— | ||
|
23
|
23
95003-230-0310M Tube (8x12x3000) |
95003-230-0310M |
from US $7.99 |
||
|
24
|
24
95003-230-0310M Tube (8x12x3000) |
95003-230-0310M |
from US $7.99 |
||
|
25
|
25
95701-060-160-0 BoltFLANGE, 6X16 |
95701-060-160-0 |
from US $0.52 |
